Linear guides without drive

The roller guides of the company RK Rose+Krieger offer the possibility to realize a simple manual adjustment task.

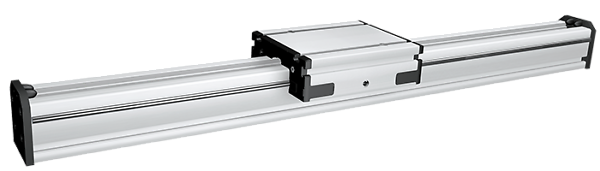

RK MonoLine R linear actuator

The RK MonoLine R is a high performance class roller guide, which represents excellent value for money.
Lineareinheit MonoLine R
  • roller guide available without drive

Optional:

  • extended guide carriage

Construction size

40, 60, 80, 120

Max. stroke

5'385 - 5'784 mm

Fy max.

1'100 - 9'400 N

Fz. max.

694 - 5'200 N

Mx max.

14 - 280 Nm

My max.

35 - 1'010 Nm

Mz max.

55 - 1'780 Nm

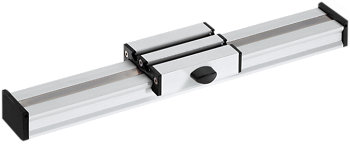

PLM-G roller guide

The compact range for positioning small loads.
Lineareinheit PLM G

Spindle:

  • right or lefthand thread
  • right and lefthand thread
  • split spindle
  • without drive (guide)

Construction size

30, 40 x 20

Max. stroke

855 mm

Fy max.

160 - 200 N

Fz. max.

180 - 220 N

Mx max.

3 - 4 Nm

My max.

10 - 14 Nm

Mz max.

10 - 14 Nm

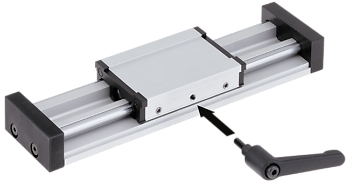

RK Compact-G linear actuator

Slimline short-stroke linear actuator for manual adjustment with excellent price-performance ratio.
Lineareinheit RK Compact G

Spindle:

  • right or lefthand thread
  • right and lefthand thread
  • without drive (guide)

Construction size

30, 40, 80, 180

Max. stroke

130 - 400 mm

Fy max.

160 - 1'150 N

Fz. max.

160 - 1'150 N

Mx max.

3 - 32 Nm

My max.

3 - 59 Nm

Mz max.

3 - 59 Nm

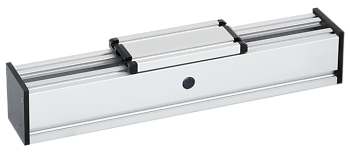

RK DuoLine R linear actuator

The optimum in performance, for dynamic adjustments
Lineareinheit DuoLine R

Spindle:

  • righthand thread
  • right and lefthand thread
  • without drive (guide)

Construction size

60, 80, 120 x 80

Max. stroke

2'268 - 7'692 mm

Fy max.

700 - 5'100 N

Fz. max.

2'500 - 8'900 N

Mx max.

48 - 500 Nm

My max.

160 - 1'200 Nm

Mz max.

140 - 1'150 Nm

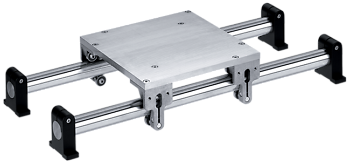

Guidage linéaire RE (guidage à tubes doubles)

Guidage solide pour des réglages simples avec des charges moyennes
Lineareinheit Rollführung RE

Construction size

30, 40

Max. stroke

3'000 mm

Fy max.

330 - 600 N

Fz. max.

1'600 - 2'400 N

Mx max.

65 - 155 Nm

My max.

65 - 155 Nm

Mz max.

20 - 65 Nm

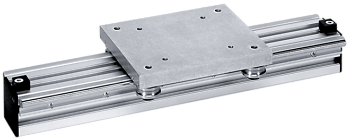

SQL profile roller guide

Low-cost guide for medium to heavy loads.
Lineareinheit Rollführung SQL

Spindle

  • without drive (guide)

Construction size

40, 60, 80, 120, 160

Max. stroke

5'750 mm

Fy max.

1'500 - 2'500 N

Fz. max.

1'000 - 1'500 N

Mx max.

50 - 134 Nm

My max.

70 - 121 Nm

Mz max.

140 - 243 Nm
