Elektrozylinder LD1000
Elektrozylinder LD1000

Electric cylinders

Linear actuators for single or synchronous operation, 12V, 24V or 48V stroke lengths up to 1000mm, force up to 10'000N

Electric cylinders are self-locking, which means that no energy needs to be supplied during standstill. This makes electric cylinders an interesting alternative to pneumatic and hydraulic actuators. Powerful DC motors, signal lines, potentiometers and Hall IC for position detection, as well as integrated limit switches thus serve the most common requirements in an uncomplicated way.

Phoenix Mecano is one of the leading manufacturers of linear actuators. Since 1982, Phoenix Mecano has been developing and manufacturing 12 V, 24 V, and 48 V electric linear actuators for applications in the fields of industry, automation, green technologies, shipbuilding, off-road vehicles, and agricultural technology.

Customization and special designs for Linear actuators

We know that industrial applications often have unique requirements regarding installation dimensions, mounting options, or load capacity. While standard solutions often require compromises, we step in where your specific requirements demand flexibility. That’s why we offer modifications to linear actuators beyond standard configurations. Here are some examples of common requests: These may include special mounting brackets or different thread sizes. Connection cables and connectors specified by your company. Or installation dimensions and stroke lengths that deviate from the standard but are physically feasible. At Phoenix Mecano, we see ourselves not just as a supplier, but as your development partner for customized electric cylinders. Please share your requirements with us.

Selectable stroke length
Power and speed according to your specifications
From quantity 1

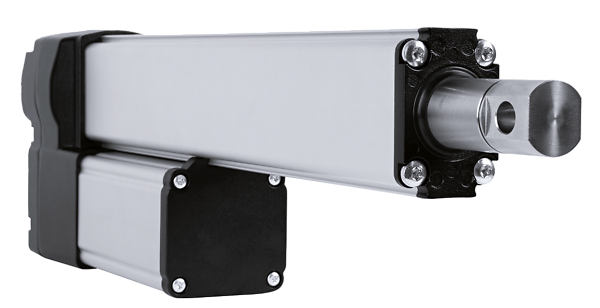

LD1000C Electric cylinders with integrated controller

The electric cylinder LD1000C is designed for flexibility, robustness and operational safety and therefore especially for the use in extreme conditions. With its sturdy die-cast aluminum housing, high temperature resistance, a stainless steel push rod and IP69K protection, it withstands extreme environmental influences and is ideally suited for outdoor applications even in extreme heat and cold.
The key feature, however, is the integrated controller. Via programmable functions, the linear drives can be flexibly adapted to your tasks. Both for single drives and for synchronous operation of several axes, the user has countless options at their disposal.
Elektrozylinder LD1000
  • Protection class IP 69k static
  • Programmable start/stop ramps
  • Position feedback by absolute travel measuring system
  • Overcurrent shutdown

Motor voltage

12, 24, 48 V DC

Stroke

15 - 1'000 mm

Max. Force

10'000 N

Max. speed

156 mm/s

Degree of protection

IP 69k static
LD1000C Montageanleitung DE Link
LD1000C Datenblatt DE Link
LD1000C Montageanleitung FR Link
LD1000C Datenblatt FR Link
LD1000 und LC1000 NRTL Zertifikat DE
LD1000 und LC1000 NRTL Zertifikat FR
LD1000C Datenblatt EN Link
Datasheet
LD1000C Montageanleitung EN Link
Installation instruction
LD1000 und LC1000 NRTL Zertifikat EN
NRTL Certifcate

LD1000E electric cylinder

The LD1000E electric cylinder was designed to replace conventional products with hydraulic or pneumatic drives. The focus was on long service life, low operating costs and high economic efficiency.
Elektrozylinder LD1000
  • Protection class IP 69k static
  • Flexible adaptation for smallest quantities
  • End switch integrated

Motor voltage

12, 24 V DC

Stroke

15 - 1'000 mm

Max. Force

10'000 N

Max. speed

130 mm/s

Degree of protection

IP 69k static
LD1000E Montageanleitung DE Link
LD1000E Datenblatt DE Link
LD1000E Montageanleitung FR Link
LD1000E Datenblatt FR Link
LD1000 und LC1000 NRTL Zertifikat DE
LD1000 und LC1000 NRTL Zertifikat FR
LD1000E Datenblatt EN Link
Datasheet
LD1000E Montageanleitung EN Link
Installation instruction
LD1000 und LC1000 NRTL Zertifikat EN
NRTL Certifcate

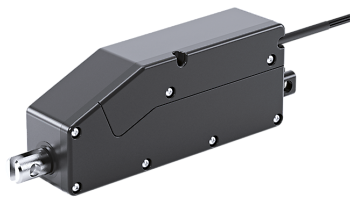

LD75 electric cylinder

The particularly robust and compact LD75 electric cylinder has been specially designed for extreme operating conditions where maximum reliability is required. Here, the LD75 is the perfect maintenance-free drive solution in the industrial, agricultural and off-highway sectors.
LD75 Elektrozylinder
  • Protection class IP69k static
  • Limit switch integrated
  • Position feedback by potentiometer

Motor voltage

12, 24 V DC

Stroke

15 - 130 mm

Max. Force

750 N

Max. speed

50 mm/s

Installation dimension

245 mm

Degree of protection

IP 69k static
LD75E Montageanleitung DE Link
LD75E Datenblatt DE Link
LD75E Montageanleitung FR Link
LD75E Datenblatt FR Link
LD75E Datenblatt EN Link
Datasheet
LD75E Montageanleitung EN Link
Installation instruction

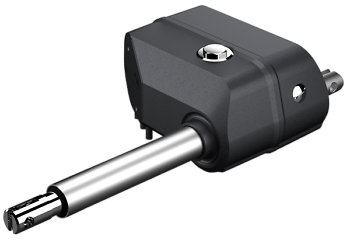

LD600 Linear actuator

The LD600 is a very smart and powerful linear actuator that has been specially designed for indoor and outdoor use. The infinitely variable adjustment of both stroke end positions by the customer using a patented mechanical adjustment unit in the actuator offers the user maximum convenience on site during installation.
Linearantrieb LD600
  • Protection class IP69k static
  • Limit switch integrated
  • Mechanically adjustable stroke end positions
  • Position feedback by potentiometer

Motor voltage

12, 24 V DC

Max. stroke

600 mm

Max. push load

6'000 N

Max. speed

19 mm/s

Installation dimension

Stroke + 200 mm

Degree of protection

IP 69k static

Max. pull load

4'000 N
Elektrozylinder LD600 Montageanleitung DE Link
Elektrozylinder LD600 Montageanleitung FR Link
Elektrozylinder LD600 Datenblatt DE Link
Elektrozylinder LD600 Datenblatt FR Link
Elektrozylinder LD600 Datenblatt EN Link
Datasheet
Elektrozylinder LD600 Montageanleitung EN Link
Installation instruction

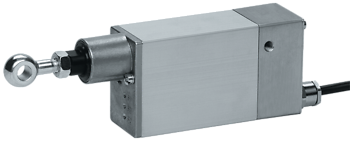

Electric cylinder BGR 010 (performance class 1)

The compact electric cylinders of the BGR010 assembly are specially designed for demanding applications. Equipped with high-quality, ironless motors, they withstand extreme loads and achieve long service lives.
Elektrozylinder BGR 010
  • End switch integr. (adjustable)
  • Signal contact executed
  • Potentiometer

Max. stroke

40 - 100 mm

Max. push load

500 N

Max. pull load

500 N

Max. speed

22 mm/s

Degree of protection

IP 30 / IP 54
Elektrozylinder BGR 010 Montageanleitung DE Link
Elektrozylinder BGR 010 Datenblatt DE Link
Elektrozylinder BGR 010 Montageanleitung FR Link
Elektrozylinder BGR 010 Datenblatt FR Link
Elektrozylinder BGR 010 Datenblatt EN Link
Datasheet
Elektrozylinder BGR 010 Montageanleitung EN Link
Installation instruction

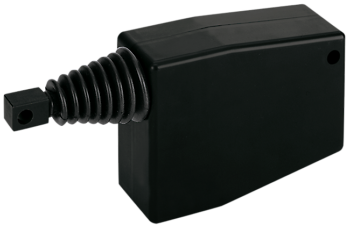

M9 electric cylinder (performance class 1)

The electric cylinders of the M9 subgroup are inexpensive linear drives for small forces and are characterized by their compactness and small footprint.
Elektrozylinder M9
  • End switch integr.
  • Signal contact executed
  • Potentiometer

Max. stroke

50 mm

Max. push load

300 N

Max. pull load

300 N

Max. speed

14 mm/s

Degree of protection

IP 30
Elektrozylinder M9 Katalog DE PDF Link
Elektrozylinder M9 Montageanleitung DE PDF Link
Elektrozylinder M9 Link DE CAD
Elektrozylinder M9 Katalog FR PDF Link
Elektrozylinder M9 Montageanleitung FR PDF Link
Elektrozylinder M9 Link FR CAD
Elektrozylinder M9 Link EN CAD
CAD Data
Elektrozylinder M9 Katalog EN PDF Link
Catalog
Elektrozylinder M9 Montageanleitung EN PDF Link
Installation instruction

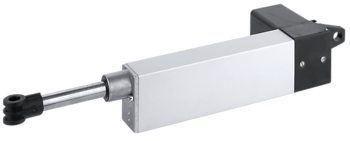

Electric cylinder BGR 015 (performance class 2)

The electric cylinders of the BGR 015 assembly are ideally suited for industrial applications. The compact and robust design allows the use even with high requirements.
Elektrozylinder BGR 015
  • End switch integr. (adjustable)
  • Signal contact executed
  • Potentiometer

Max. stroke

300 mm

Max. push load

1'000 N

Max. pull load

1'000 N

Max. speed

100 mm/s

Degree of protection

IP 54
Elektrozylinder BGR 015 Montageanleitung DE Link
Elektrozylinder BGR 015 Datenblatt DE Link
Elektrozylinder BGR 015 Montageanleitung FR Link
Elektrozylinder BGR 015 Datenblatt FR Link
Elektrozylinder BGR 015 CAD Link
CAD Data
Elektrozylinder BGR 015 Datenblatt EN Link
Datasheet
Elektrozylinder BGR 015 Montageanleitung EN Link
Installation instruction

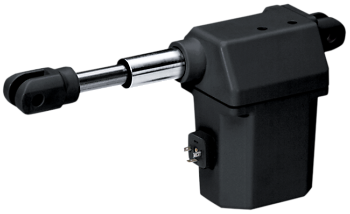

LAMBDA electric cylinder (performance class 2)

The LAMBDA electric cylinder is ideally suited both as an industrial cylinder and for areas of increased protection (IP 66).
Elektrozylinder LAMBDA
  • End switch integrated
  • Synchronizable via control
  • Signal contact implemented
  • Potentiometer

Max. stroke

600 mm

Max. push load

6'000 N

Max. pull load

4'000 N

Max. speed

21 mm/s

Degree of protection

IP66
LAMBDA Elektrozylinder Montageanleitung DE Link
LAMBDA Elektrozylinder DE CAD
LAMBDA Elektrozylinder Datenblatt DE Link
LAMBDA Elektrozylinder Montageanleitung FR Link
LAMBDA Elektrozylinder Datenblatt FR Link
LAMBDA Elektrozylinder FR CAD
LAMBDA Elektrozylinder EN CAD
CAD Data
LAMBDA Elektrozylinder Datenblatt EN Link
Datasheet
LAMBDA Elektrozylinder Montageanleitung EN Link
Installation instruction

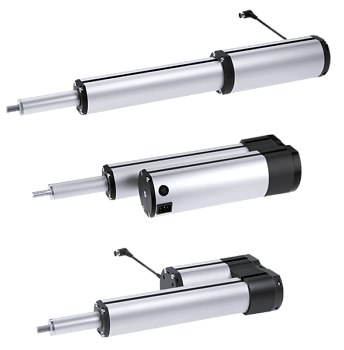

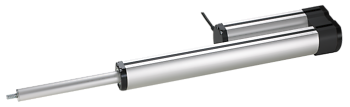

LZ60 electric cylinder (performance class 2)

The completely equipped electric cylinders already contain the motor-gear unit including motor brake, 2-channel Hall-IC sensor and two limit switches. All connection cables are led out directly to make commissioning convenient, especially with regard to PLC operation. The connection mounting of the electric cylinder is compatible with commercially available pneumatic and hydraulic cylinders. The LZ60 linear actuator is available in a rod (S) version and a parallel (P) version.
Elektrozylinder LZ 60
  • End switch integr.
  • Can be synchronized via control
  • Signal contact implemented (optional)
  • integr. control (optional)
  • Inline or parallel version

Max. stroke

600 mm

Max. push load

4'000 N

Max. pull load

4'000 N

Max. speed

50 mm/s

Degree of protection

IP54
Elektrozylinder LZ 60 Katalog DE Link
Elektrozylinder LZ 60 Montageanleitung DE Link
Elektrozylinder LZ 60 Katalog FR Link
Elektrozylinder LZ 60 Montageanleitung FR Link
Elektrozylinder LZ 60 Katalog EN Link
Catalog
Elektrozylinder LZ 60 Montageanleitung EN Link
Installation instruction

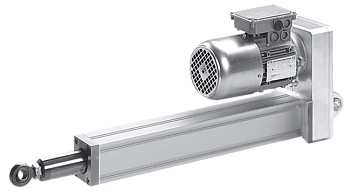

Electric cylinder SLZ 90 (heavy duty cylinder)

The duty cycle of 100% makes the SLZ heavy-duty cylinder an interesting and reliable continuous runner for industrial applications. The modular design offers flexibility when equipping with different drive concepts.
Elektrozylinder SLZ 90
  • Can be synchronized via control system (motor-dependent)
  • Protection class IP 54

Max. stroke

2'000 mm

Max. push load

25'000 N

Max. pull load

25'000 N

Max. speed

77 mm/s

Degree of protection

IP 54
Elektrozylinder SLZ 90 Katalog DE Link
Elektrozylinder SLZ 90 Montageanleitung DE Link
Elektrozylinder SLZ 90 Katalog FR Link
Elektrozylinder SLZ 90 Montageanleitung FR Link
Elektrozylinder SLZ 90 Katalog EN Link
Catalog
Elektrozylinder SLZ 90 Montageanleitung EN Link
Installation instruction

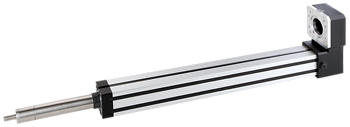

Electric cylinder SLZ 63 (heavy duty cylinder)

Due to the parallel mounting of the motor, the SLZ 63 heavy-duty cylinder has an optimum installation-stroke ratio. Its maximum stroke length is 1,000 mm, but up to 1,500 mm stroke is also possible on request. The SLZ 63 can be flexibly integrated into a wide variety of applications thanks to grooves in the outer profile and connection dimensions in accordance with DIN ISO 15552.
Elektrozylinder SLZ 63
  • Drives freely selectable
  • Service life up to 5 million double strokes
  • Variable connection options DIN ISO 15552 compliant
  • Stainless steel push rod protected against torsion

Max. stroke

1'000 mm

Max. push load

15'000 N

Max. pull load

15'000 N

Travel speed

1'250 mm/s

Degree of protection

IP 54 / IP 65
Elektrozylinder SLZ 63 Katalog DE Link
Elektrozylinder SLZ 63 Montageanleitung DE Link
Elektrozylinder SLZ 63 Katalog FR Link
Elektrozylinder SLZ 63 Montageanleitung FR Link
Elektrozylinder SLZ 63 CAD
CAD Data
Elektrozylinder SLZ 63 Katalog EN Link
Catalog
Elektrozylinder SLZ 63 Montageanleitung EN Link
Installation instruction
