Swiss Lean Award 2023

Benefit from our lean experience, which was honoured with the Swiss Lean Award 2023!

LEAN Workstation

Customized LEAN workstations developed for your product

Each LEAN assembly workstation is individually designed and manufactured to the customer's product according to LEAN principles in order to increase productivity. The product is assembled in a one-piece flow, which increases productivity compared to "batch production" and also significantly minimizes space.

Together with the customer, the previous assembly process is examined and the MUDAS or wastes are uncovered. In the second step, a concept is developed and the assembly workstation or assembly line is designed. The focus here is on eliminating the previously uncovered wastes and consequently increasing the added value. At the same time, however, it is also important to ensure ergonomics and targeted illumination of the workplace.

With our LEAN-live workshop we also offer you the opportunity to set up an assembly workstation. Come to us with your product and your team. You will be accompanied by one of our LEAN experts.

Montagearbeitsplatz mit SETAGO Werkerführung
Montagearbeitsplatz mit SETAGO Werkerführung
Ergonomic

Height-adjustable workstations for the well-being of the employees

Individually

Customized workstations for your product

Productivity

Guaranteed increase in productivity

One-Piece-Flow

Production errors or rejects are identified immediately

ESD design

ESD workstations to protect electronic components

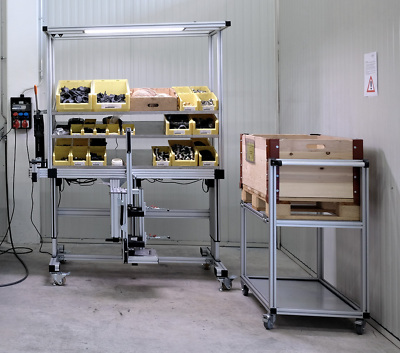

Einzelarbeitsplatz aus Alu-Profilen mit Materialwagen
Einzelarbeitsplatz aus Alu-Profilen mit Materialwagen
Single workstation

Single workstation ergonomic and efficient for small assemblies

Single workstations are designed and set up so that one employee can efficiently assemble the complete product or an assembly in a one-piece flow. Tools, required equipment, C-parts and assembly components are within easy reach. Larger components or pre-assemblies are attached directly from the assembly cart within reach at the workstation. Customized turning and holding devices ensure that the employee can work efficiently with both hands. After testing, the assembled product is immediately packed ready for transport or made available on an assembly cart for the next production step. Material is supplied from behind directly to the shelves at the workstation. A SETAGO® Pick by Light system can be used to support the employee during assembly. Physically demanding or precise work can be performed by a collaborative robot.

Einzelarbeitsplatz aus Alu-Profilen mit Materialwagen
Einzelarbeitsplatz aus Alu-Profilen mit Materialwagen
U-shaped workstation

U-Shaped Workstation ‒ one-piece flow assembly with a large number of individual parts

The employee works centrally and thus has short distances. In a U-shaped cell, the entire process is divided into individual work steps. The tools and components required for each step are within easy reach. The material flow is based on the flow principle, whereby the product "moves" with the employee from place to place through the process. The material is fed directly into the racks from behind, thus guaranteeing the FIFO principle.

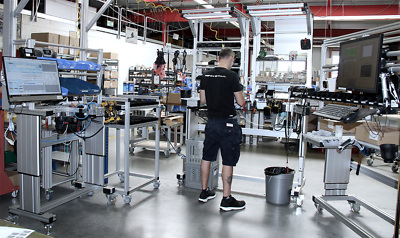

Mitarbeiter montiert im One-Piece-Flow an einer Montageinsel
Mitarbeiter montiert im One-Piece-Flow an einer Montageinsel
Mitarbeiter montiert auf einem Montagewagen entlang einem Regal mit den Bauteilen
Mitarbeiter montiert auf einem Montagewagen entlang einem Regal mit den Bauteilen
Assembly line

Assembly lines with a high number of variants and a large number of components

In an assembly line, the assembly process is distributed to several workstations and interconnected by a material flow system. Depending on the workload, several people can also assemble in the line at the same time. However, the synchronization of the individual assembly steps should be ensured. The assembly line can be quickly and easily changed over to different product variants. If, for example, a test station, press-fit device or soldering station is required for a product variant, these are mounted on mobile trolleys and can be integrated into the assembly line at the required location. Required assembly material is docked to the workstation via trolleys.

Mitarbeiter montiert auf einem Montagewagen entlang einem Regal mit den Bauteilen
Mitarbeiter montiert auf einem Montagewagen entlang einem Regal mit den Bauteilen
Informationskreis Icon
Did you know
Pick by Light System

The SETAGO® Pick by Light worker guidance system supports the worker in complex assembly processes. Step-by-step assembly instructions guide the worker through the assembly process.

Assembly trolleys for heavy products

Assembly trolleys are used along an assembly line when the product is very heavy or unwieldy. Moving from workstation to workstation by hand or roller conveyor is not possible. Assembly trolleys are height adjustable and the support of the product can be tilted and rotated. This allows the employee to comfortably and ergonomically assemble the product. The necessary tools are also attached to the trolley and are always at hand in the right place. The trolley can be firmly guided along the assembly line or freely moved and fixed.

Why Phoenix Mecano

With LEAN workstations from Phoenix Mecano, you benefit in several ways

Haken Icon

Increase in productivity

We guarantee an increase in productivity

Haken Icon

Experience

We produce according to LEAN principles ourselves and know what we are talking about

Haken Icon

LEAN live workshop

Together we work out the process optimization in the workshop

Haken Icon

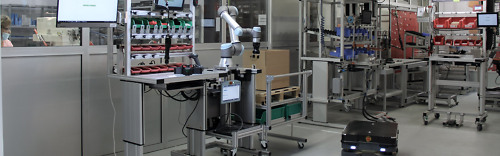

Smart Factory Assembly

Combined solutions of LEAN Production and digitalization

Haken Icon

Convince yourself

Come by and let our production convince you

“The assembly line is very beneficial for us and enables us to offer even more attractive jobs. The technical support we received from Phoenix Mecano Komponenten AG during the entire process was very much appreciated. Through our complex requirements, we have been able to contribute to Phoenix's ability to take on complex and highly individual scenarios in the future and to continue to develop its systems.”
Dario Cervini
Area Manager, Altra Schaffhausen
"Thanks to the excellent cooperation with Phoenix Mecano, we were able to develop and implement effective solutions. The working environment and ergonomics of the workstations were significantly improved and optimized."
Philip Sommerhalder
Director Pre-Assembly, Pilatus Aircraft Ltd
“The support and advice received from Phoenix Mecano throughout the project was very professional. I also thought the LEAN Live Workshop at Phoenix Mecano was great. We have learned a lot, which will also benefit future projects.”
Beat Messerli
Bieri Hydraulik AG
Mitarbeiter montiert auf einem Montagewagen entlang einem Regal mit den Bauteilen

Productivity increase of up to 30%

Shelves fitted with a Pick-by-Light system and an assembly trolley matched to the product ensured an increase in productivity of up to 30% within just 4 weeks.
Read story
Montagearbeitsplatz mit Pick by Light System

Produce up to 60% faster with One Piece Flow

Assembly workstation with integrated, ergonomic swiveling device for heavy parts. With the new assembly process in the one piece flow, assembly time is reduced by up to 60%.
Read story
LEAN Arbeitsplatzsystem mit Einpressstation

LEAN live workshop assists in increasing productivity by up to 40%

In a LEAN workshop, the new assembly process was defined with the customer according to LEAN principles, and built and optimized with Cardboard Engineering.
Read story

Your contact person

Are you interested in a productivity enhancing workstation solution? Please contact us.

Foto Lukas Hänni
Lukas Hänni
Projektleiter Sales Profiltechnik / LEAN Production
Project Manager Sales Profile Technology / LEAN Production
Responsable de projet Sales Technique de profilés / LEAN Production
+41 52 742 75 04
lukas.haenni@phoenix-mecano.ch
Online Termin buchen

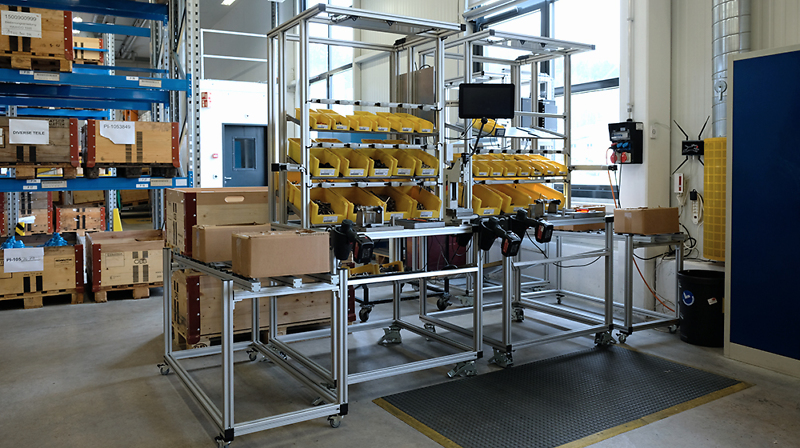

Montagearbeitsplatz mit Pick by Light System
Montagearbeitsplatz mit Pick by Light System

Assembly workstation with pick by light system

Workstation built with 40x40 mm aluminum profiles
Integrated press fit device
Holding and tilting device for ergonomic mounting
Pick by Light System guides the employee through the assembly process
The Pick by Light sensor shows the employee which component he has to assemble next and in which box the component is located

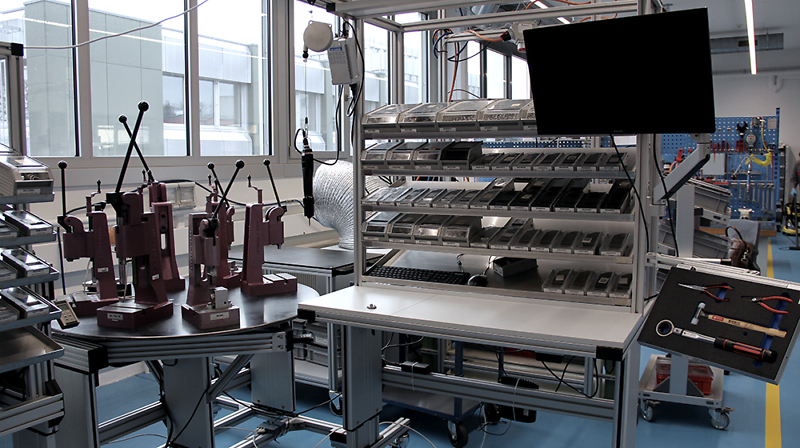

LEAN Arbeitsplatzsystem mit Einpressstation
LEAN Arbeitsplatzsystem mit Einpressstation

Assembly workstation with turntable

Assembly workstation and turntable with lifting columns allows the employee to work in a standing or sitting position
MABAG electric screwdriver with torque monitoring
Tool arranged on swiveling tool holder
Substantial space savings and no more walking due to the arrangement of the presses on a turntable

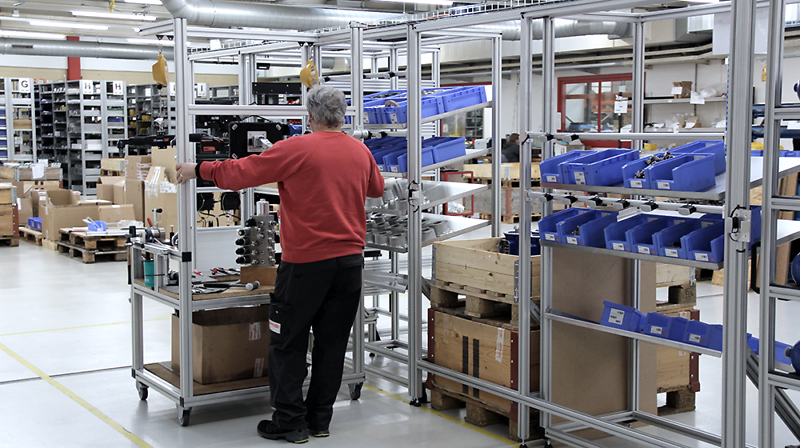

Mitarbeiter montiert auf einem Montagewagen entlang einem Regal mit den Bauteilen
Mitarbeiter montiert auf einem Montagewagen entlang einem Regal mit den Bauteilen

Assembly line with pick by light worker guidance

Material rack with material feed from the rear
Empty boxes are discharged to the rear in the lower tray
Assembly cart with pick by light display
The worker guidance shows the employee which component he has to assemble next
Pick by Light Sensor shows in which box the component is located
