Safety guards | Partition walls

Safety guards conforming to standards

Safety guards – Safety and protection for man and machine

In automated production plants, machine safety fences and partition walls ensure the protection of people, machines and production processes. They prevent careless intervention or entry into the danger zones of the plants.

Our safety guards, which are individually manufactured according to your specifications, not only meet the requirements of the EN ISO 14120 standard and the Machinery Directive 2006/42/EC. They also meet the highest demands in terms of flexibility and design. Our flexible modular system facilitates the design of application-specific machine safety fences and partition walls.

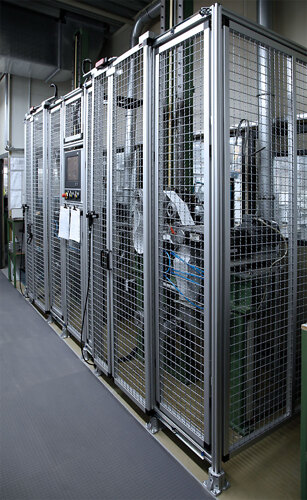

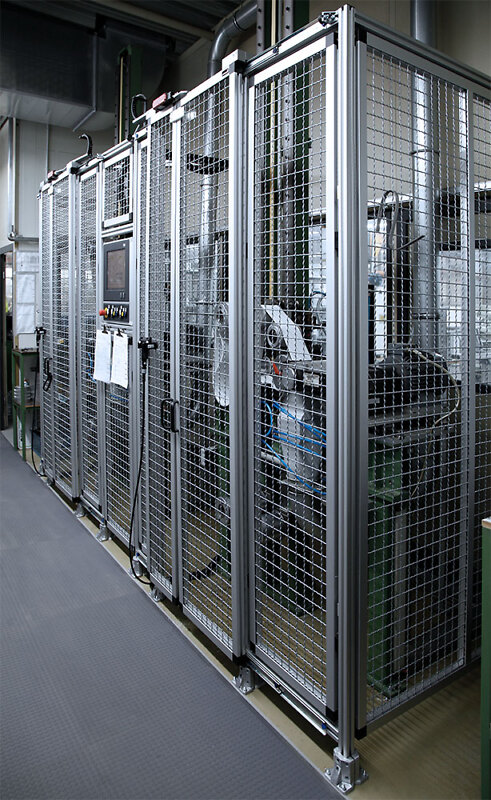

Schutzzaun mit Schiebetür aus Aluminiumprofilen

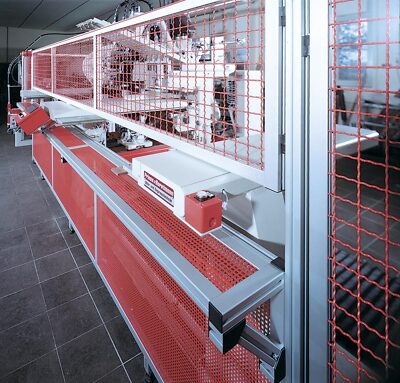

Trennende Schutzeinrichtung aus Aluminiumprofilen

From the component to the guards

Separating protective device – Maximum flexibility thanks to modular aluminum profile system

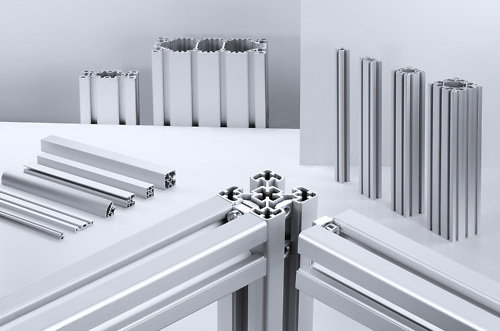

Our stable safety guards and partition walls consist of individually adaptable components: Anodized aluminum profiles in various sizes, lengths and designs form the support posts of the system. They are firmly anchored to the hall floor by means of feet. Aluminum clamping profiles, which are unique on the market, accommodate a wide range of surface elements with thicknesses between 1 and 10 mm. The surface materials we mainly use are galvanized woven wire mesh, Makrolon, acrylic glass, Alucobond, sheet metal or wood. Lockable swing or sliding doors – also made to fit precisely from the various aluminum profiles from the modular system – allow controlled access to your machine or system. Special Click&Safe connecting elements are used to quickly and safely open and close the safety fence elements on the supports.

Standard-compliant

Standard-compliant safety guards and partition walls according to EN ISO 14120

Flexibility

Maximum flexibility through our aluminum profile modular system

Execution

Paint finishes, functionalities and materials adapted to the respective machine

Access

Click&Safe fasteners for secure opening and closing

Surface elements

Woven wire mesh, Makrolon, acrylic glass, Alucobond, sheet metal or wood

Tailor-made

Tailored to your individual requirements

Services and project procedure

From the idea to the separating protective device

Idea / concept

Send a sketch, CAD data, or we will visit you on site and establish your requirements

Engineering

CAD design with all technical features and preparation of the parts list. Approval by the client

Manufacturing

Special painting, cutting of surface elements and profiles, production of special parts and adapter plates

Assembly

Building of the complete assembly at our premises. Acceptance by the client when required

Assembly on site

Delivery of the assembly. On-site assembly upon customer request

Delivery of the assembly. On customer request assembly on site Whether a simple partition wall or a complex protective fence system with different area elements and secured accesses – we will implement exactly the separating protective device that you require. Your specifications, safety requirements, distances to be maintained, required accesses, height of the partition walls, etc. - provide us with the framework conditions for the realization of your machine safety fence or partition system.
If you wish, we will accompany you from the first sketch to the installation on site, take over the color design of the separating protective devices and adapt them to the conditions on site.
