HMI solutions

HMI complete solutions

HMI systems serve as the interface between users and electronic devices. The constantly increasing demands of customers for individuality and complete solutions, are reflected in our HMI product portfolio. In addition to the proven support arm systems, operating panels and standardized industrial panel PCs, we develop and produce individual, customer-specific HMI solutions according to your needs.

This starts with the design of the operating panel, the selection of the input unit and the design of the performance and interfaces of the industrial PC. We offer you a complete solution from a single source. From the planning and development phase to the fully assembled HMI unit including functional testing.

Alle Downloads zum Produkt auf einem Blick

HMI products

Concept
Product design
Engineering
Prototyping and testing
Series production

Concept HMI Industrial Panel PC

In the concept phase, we define the requirements for the HMI solution together with you. These include hardware performance, functions, budget and area of application. Do you want a special solution in your own design, or can we build on standard modules such as the S-Line Gen.5. At the end, you will receive a concept of how we will implement your requirements.

Learn more

Product Design HMI Solutions

An appealing design makes up the emotional value of a product and fits the concept of your plant. Already in the design phase of the HMI solution, we pay attention to the producibility and cost-effectiveness for series production. Most customers already bring a design idea into the concept phase.

Learn more

Engineering HMI solutions

Our engineers now develop the HMI solution according to the created concept and requirements. The individual components such as input units and PC components are defined. We create the technical drawings and 3D CAD models for the entire solution.

Learn more

Prototyping and testing

After the design, a functional prototype is produced. The enclosure is usually milled from aluminium. The prototype is then extensively tested in use by the customer.

Learn more

Series production HMI solutions

After successful testing of the prototype, series production begins. Strict quality control, including a recorded burn-in load test and fully documented quality management, are standard for us with every single industrial PC and industrial monitor.

Why Phoenix Mecano

This is why you should choose our HMI solutions

Finding solutions together

Leads to sustainable results

Assistance with technical questions

At any time and with level

Consultation on site

On request, quickly realizable

Innovation

Drives us forward and enables progress

Years of experience

Speaks for itself

One partner for everything

One contact for your complete order

Your contact person

Interested in our HMI Solutions? Then contact us.

Peter Roost
Projektleiter Sales Gehäusetechnik
Project Manager Sales Enclosure technology
Responsable de projet Sales Technique des boîtiers
+41 52 742 75 67
peter.roost@phoenix-mecano.ch
Online Termin buchen

Alu Gehäuse Bocube mit mechanischer Bearbeitung und eingebautem touchscreen
Alu Gehäuse Bocube mit mechanischer Bearbeitung und eingebautem touchscreen
Bopla Logo

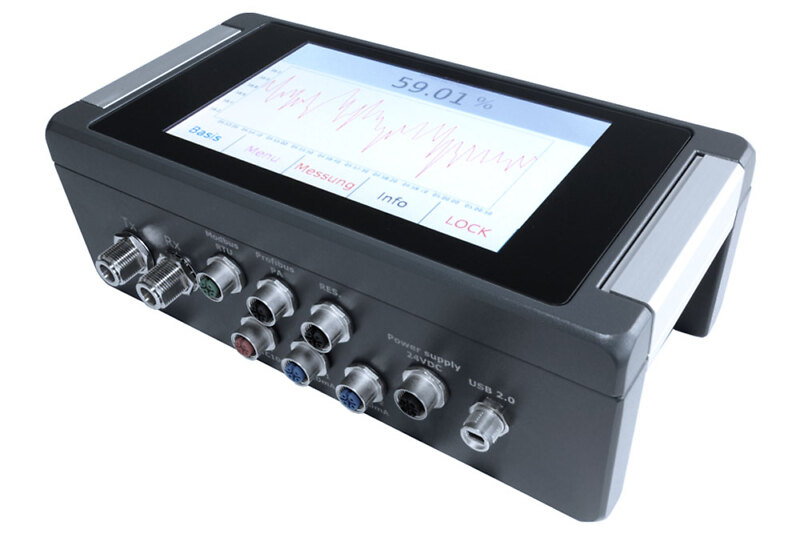

Aluminum enclosure with integrated touchscreen

Aluminium enclosure grey lacquered
Integrated touchscreen in lid
Enclosure mechanically machined according to drawing
Marking of the connectors in pad printing
Handgehäuse mit Folientastatur und Display
Handgehäuse mit Folientastatur und Display
Bopla Logo

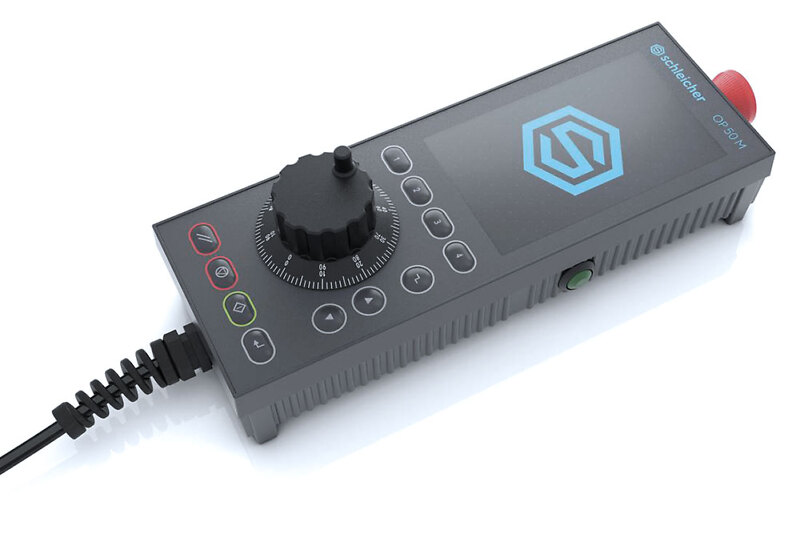

Hand-held enclosure with display lamp

Tastomat hand-held case
Mechanical processing according to drawing
Customised membrane keypad mounted
Membrane keypad laminated with display
 Profilgehäuse mit integriertem kapazitiven Touchscreen
 Profilgehäuse mit integriertem kapazitiven Touchscreen
Bopla Logo

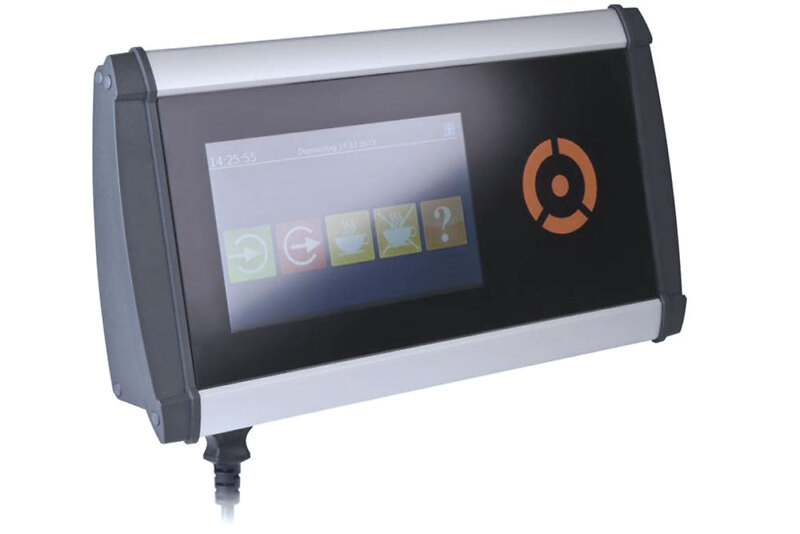

Profile enclosure with touch screen

Alu-Topline aluminium profile with plastic cover
Mechanical processing according to drawing
Touchscreen integration with custom buttons
Tragarmsystem GTV-Light HMI Lösungen
Tragarmsystem GTV-Light HMI Lösungen

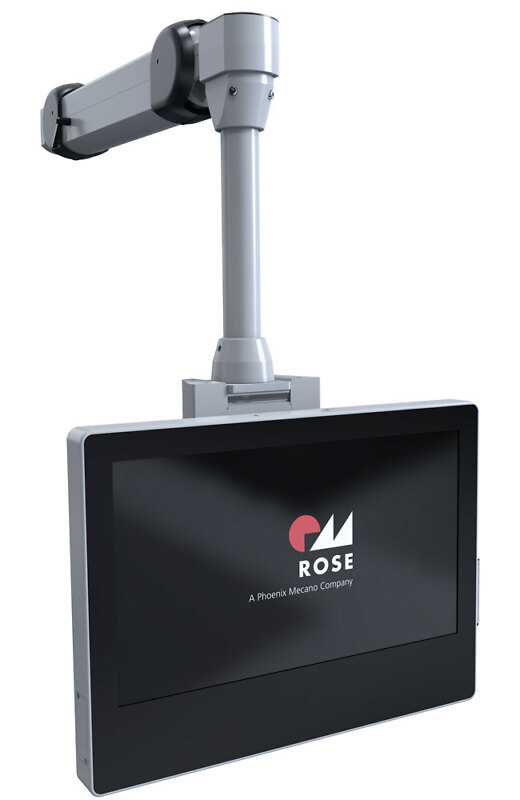

Support arm with HMI panel PC

Robust aluminium support arm
Height adjustable for ergonomic operation
Quick panel replacement with the flat panel adapter
HMI complete solution according to customer application
Industrie Panel PC S-Line HMI Lösungen
Industrie Panel PC S-Line HMI Lösungen

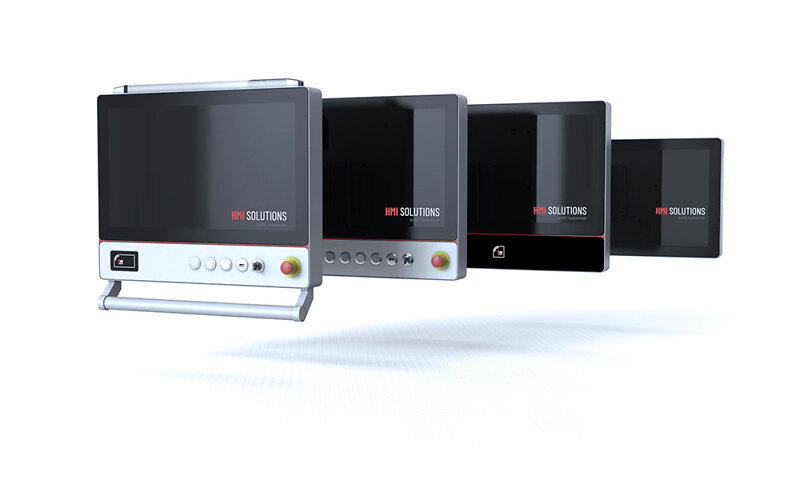

HMI Panel PC

Sturdy aluminium frame
Integrated touch screen in the front
Interfaces expandable according to customer requirements
Enclosure size according to customer requirements
