Timing-belt linear units

The timing belt linear units from RK Rose+Krieger are predestined for fast positioning and handling tasks. Another advantage of these linear units is that they can be used largely maintenance-free.

RK EcoLine Z linear unit with sliding or roller guide

The RK EcoLine Z linear unit is a cost-effective alternative to the high-end RK MonoLine and DuoLine linear units. The tensioning device for the timing belt is integrated directly into the guide profile. This allows for quick retensioning and keeps the assembly compact. The guide is available either as a robust slide guide or as a roller guide for high dynamics and continuous operation.

Lineareinheit RK EcoLine Z mit Zahnriemenantrieb

Guide:

With slide or roller guides

Construction size

Max. stroke

2592 mm

Fx max.

1300 N

Fy max.

600-700 N

Fz. max.

1435-1640 N

Mx max.

50-60 Nm

My max.

170-204 Nm

Mz max.

105-135 Nm

RK EcoLine Z Katalog DE Link

RK EcoLine Z Katalog EN FR Link

Catalog

Product finder

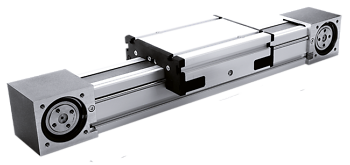

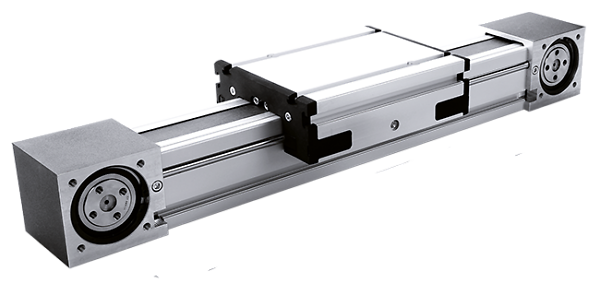

RK MonoLine Z linear unit

The RK MonoLine linear unit is a high performance class roller guide, which represents excellent value for money.

Guide:

roller guide available without drive

Optional:

extended guide carriage

Construction size

40, 60, 80, 120

Max. stroke

5'465 - 5'780 mm

Fx max.

480 - 4'800 N

Fy max.

1'100 - 9'400 N

Fz. max.

694 - 5'200 N

Mx max.

14 - 280 Nm

My max.

35 - 1'010 Nm

Mz max.

55 - 1'780 Nm

RK MonoLine Z Linearachse Katalog DE Link

RK MonoLine Z Linearachse Katalog FR Link

RK MonoLine Z Linearachse CAD

CAD Data

RK MonoLine Z Linearachse Katalog EN Link

Catalog

Product finder

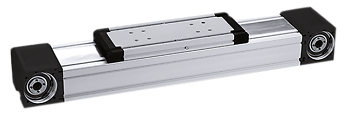

RK DuoLine Z (ball rail linear unit)

All-round linear unit with encapsulated guide system.

Guide:

roller guide available without drive

Optional:

locking system RK Safelock

Construction size

60, 80, 120, 160

Max. stroke

5'665 - 9'010 mm

Fx max.

1'000 - 6'000 N

Fy max.

700 - 5'100 N

Fz. max.

2'500 - 8'900 N

Mx max.

48 - 500 Nm

Mx max.

160 - 1'200 Nm

Mz max.

140 - 1'150 Nm

RK DuoLine Z Linearachse Katalog DE Link

RK DuoLine Z Linearachse Katalog FR Link

RK DuoLine Z Linearachse CAD

CAD Data

RK DuoLine Z Linearachse Katalog EN Link

Catalog

Product finder

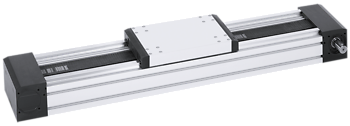

MultiLine (ball rail linear unit)

Compact ball rail linear unit for high loads.

Guide:

roller guide available without drive
locking system RK Safelock

Construction size

200

Max. stroke

5'620 mm

Fx max.

4'700 N

Fy max.

8'200 N

Fz. max.

12'000 N

Mx max.

920 Nm

My max.

1'600 Nm

Mz max.

1'500 Nm

Linearachse MultiLine Katalog DE Link

Linearachse MultiLine Katalog FR Link

Linearachse MultiLine CAD

CAD Data

Linearachse MultiLine Katalog EN Link

Catalog

Product finder

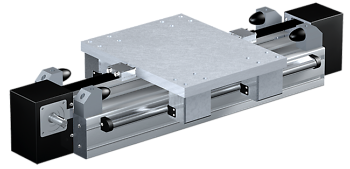

D-Line (heavy duty linear unit)

Heavy duty linear unit.

Construction size

160, 240, 320

Max. stroke

9'194 mm

Fx max.

4'700 N

Fy max.

30'000 N

Fz. max.

30'000 N

Mx max.

3'800 Nm

My max.

6'880 Nm

Mz max.

6'880 Nm

D-Line Schwerlast Linearachse Katalog DE Link

D-Line Schwerlast Linearachse Katalog FR Link

D-Line Schwerlast Linearachse Katalog EN Link

Catalog

Product finder
