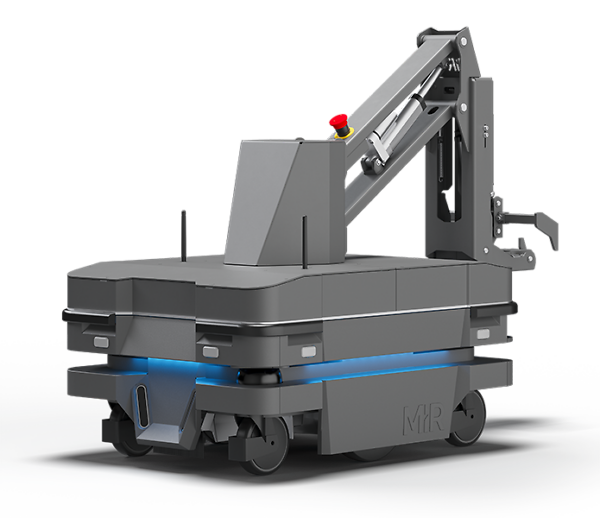

Mobile Industrial Robots Hook
Mobile Industrial Robots Hook

AMR - Autonomous mobile robots

The right AMR robot for every application!

Mobile Industrial Robots' AMR's are autonomous mobile robots designed to increase productivity in logistics and manufacturing operations. AMR's increase your efficiency by allowing your employees to focus on higher value activities. At the same time, you shorten lead times, reduce the risk of bottlenecks and optimize safety in production.

Safet
Flexible
Scaleable
Efficient
Easy to integrate
Agile

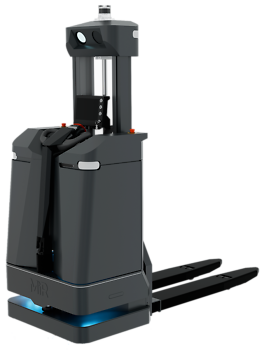

MiR1200 Pallet Jack - The mobile robot for transporting Euro pallets

The MiR1200 mobile robot transports Euro pallets weighing up to 1200 kg. It navigates safely around people and other obstacles and is a safe alternative to conventional forklift trucks and pallet trucks.
Mobiler Roboter Pallet Jack 1200
  • Compatible accessories: MiR Fleet

Max. load capacity

1200 kg

Dimensions

820 x 1934 x 1990 mm

Max. speed

1.5 m/s

Battery duration

10 h

Degree of protection

IP52

Safety standard

ISO 3691-4

Max. Pick/Place height

850 mm
MiR1200 Datenblatt PDF
Datasheet MiR1200

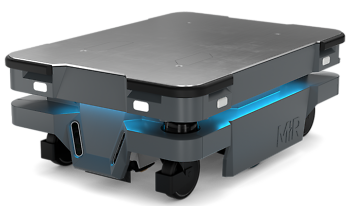

MiR250 - the all-rounder among autonomous mobile robots

The MiR250 driverless transport system is the compact all-rounder. Due to the considerable payload of 250 kg and the many compatible top modules, it is up to almost any task. The simple set-up, its low space requirement and its great adaptability allow optimization of internal logistics without major layout changes.
Autonomer Mobiler Roboter MiR250
  • Compatible top modules: MiR Hook, MiR Shelf Carrier 250
  • Compatible accessories: MiR Charger 48V, MiR Fleet, MiR Go Applications

Max. load capacity

250 kg

Dimensions

800 x 580 x 300 mm

Weight

83 kg

Max. speed

2 m/s

Battery duration

13 h

Degree of protection

IP21
MiR250 Datenblatt PDF
Datasheet MiR250

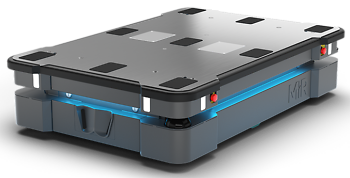

MiR600 - the little big one mobile robot

The MiR600 transport robot is a safe and strong AMR in the size of a pallet. Because it meets the highest available safety standards and has increased resistance to liquids and dust, the MiR is more stable and reliable than other transport robots on the market.
Autonomer Mobiler Roboter MiR600
  • Compatible top modules: MiR EU Pallet Lift 600, MiR Pallet Lift 600, MiR Shelf Lift
  • Compatible accessories: MiR Charger 48V, MiR EU Pallet Rack, MiR Pallet Rack, MiR Fleet, MiR Go Applications

Max. load capacity

600 kg

Dimensions

1350 x 910 x 322 mm

Weight

229 kg

Max. speed

2 m/s

Battery duration

11 h

Degree of protection

IP52

Safety standard

ISO 3691-4
MiR600 Datenblatt PDF
Datasheet MiR600

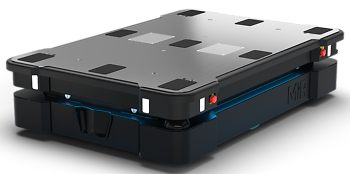

MiR1350 - the heavyweight among autonomous mobile robots

With its payload of 1.35 tons, the MiR1350 is the most powerful AMR from Mobile Industrial Robots. By automatically transporting heavy loads and pallets, the MiR1350 enables maximum efficiency gains in your logistics operations.
Autonomer Mobiler Roboter MiR1350
  • Compatible top modules: MiR EU Pallet Lift 1350, MiR Pallet Lift 1350, MiR Shelf Lift
  • Compatible accessories: MiR Charger 48V, MiR EU Pallet Rack, MiR Pallet Rack, MiR Fleet, MiR Go Applications

Safety standard

ISO 3691-4

Degree of protection

IP52

Max. load capacity

1350 kg

Dimensions

1350 x 910 x 322 mm

Weight

229 kg

Max. speed

2 m/s

Battery duration

11 h
MiR1350 Datenblatt PDF
Datasheet MiR1350

Your contact person

Are you interested in automated guided vehicles for your intra-logistics? Contact us for an application check including a demonstration as well as an ROI calculation.
