Worker assistance system

Worker assistance system guides you step by step through the assembly process

Be it to quickly familiarize employees with the work process, to secure know-how or to support employees with multi-variant products and ensure quality. The advantages of digital work instructions are manifold. Create and manage your work instructions in digital form.

The software guides employees safely through the individual process steps using text, images and videos. The worker assistance system enables even new, inexperienced or cognitively impaired employees to successfully complete complex tasks without any training time. With the Setago.io worker assistance system, it has never been easier to create digital work instructions.

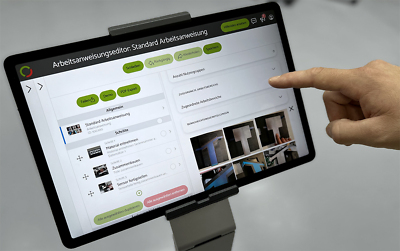

Software Werkerassistenzsystem
Software Werkerassistenzsystem
Foto Marvin Waldvogel 184A3FEDFC2
Marvin Waldvogel

We would be happy to evaluate potential applications for our worker assistance system in your company so that you can become even more competitive!
Contact now
Advantages Worker assistance system

Why you should choose a worker assistance system

Haken Icon

Digital work instructions

Standardised and centrally stored

Haken Icon

Higher quality

Error reduction through guided process

Haken Icon

Short training times

Simple onboarding of new employees

Haken Icon

Traceability

Tracking & tracing of serial numbers and batches

Haken Icon

Secured know-how

Securing expertise and facilitating knowledge transfer

Haken Icon

Complete documentation

Record and save test protocols and documents

Worker assistance system - The most important functions

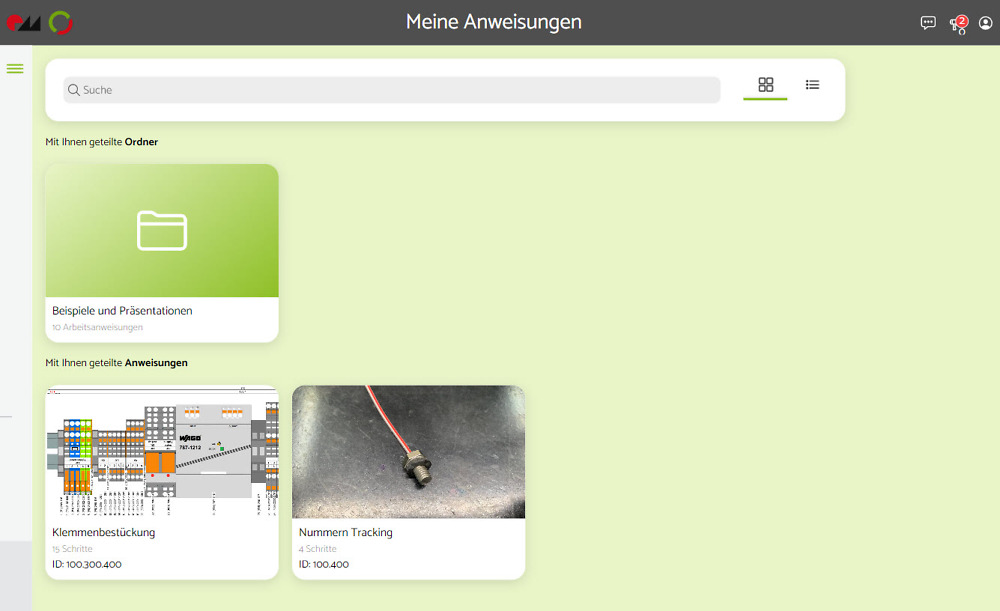

Overview of work instructions

All recorded instructions can be clearly grouped and arranged. A preview image supports identification.
Übersicht digitale Arbeitsanweisungen
Search function

Search function

Text field to search for the desired work instruction. Finding and selecting can also be done by scanning a barcode

Work instruction preview

Work instruction preview

Overview of the work instruction. Preview image, article number, title and the number of work steps

Display / View

Display / View

A tile and list view are available for selection

Folder structure

Folder structure

Create folders to better group and structure work instructions

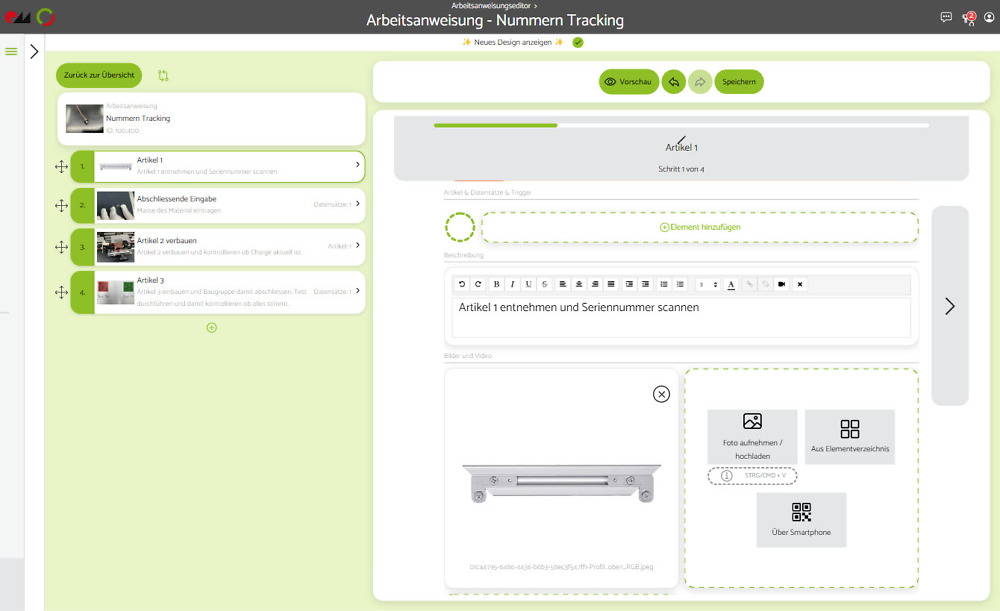

Entering work steps

Enter the individual work steps with text, images, video and articles. Test documents, control of external devices or input fields for data acquisition can also be created.
Ansicht zum erfassen einer Arbeitsanweisung im Werkerassistenzsystem
The individual work steps

The individual work steps

Overview of the individual work steps

Text block

Text block

Text describing the work to be carried out

Selection of blocks

Selection of blocks

Various blocks are available to describe and document the work step or to record data

Image / video block

Image / video block

Suitable images and videos describing the work step. Easy upload also via smartphone

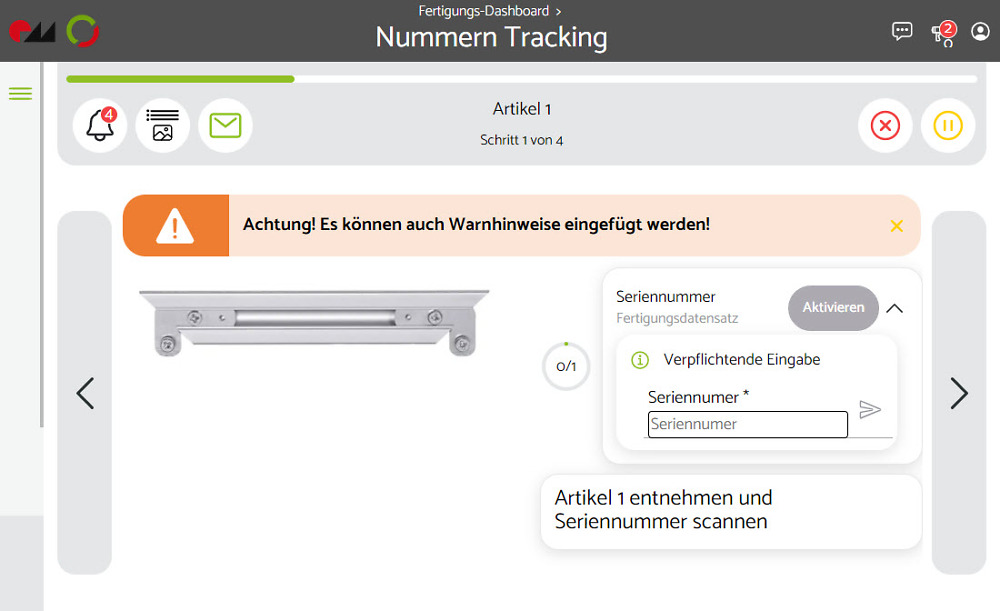

Executing a work step

The employee sees a detailed description of how to carry out the work step and which article is required.
Ansicht Arbeitsschritt im Werkerassistenzsystem
Next work step

Next work step

Once the work step has been completed, you can move on to the next step

Warnings

Warnings

Known sources of error and special requirements can be highlighted / made visible here

Collect process data

Collect process data

Collect process data such as serial numbers, test results, etc. if this is required for quality assurance purposes

Description

Description

Description of the work process that the employee has to carry out. Visually supported with pictures and videos

Informationskreis Icon
Test for free now!
Test now 30 days free of charge the SETAGO® worker assistance system

Test the SETAGO® worker assistance system with 2 active users, 5 GB free storage space and 3 shareable documents. All options of the business package are available to you.



Test it here for free!

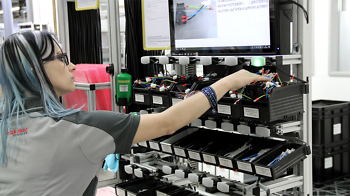

Mitarbeiterin greift ein Bauteil aus einer Greifschale

Manufacturing of sophisticated assemblies

The SETAGO pick-by-light system allows complex production processes to be broken down into simple steps. Quality is improved and employees can be trained very quickly.
Read story

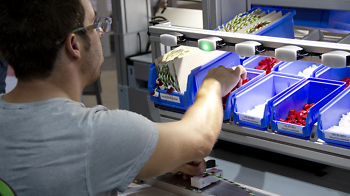

Mitarbeiterin greift das Bauteil welches der LED-Sensor anzeigt

Employees are trained very quickly

With the SETAGO pick-by-light system, employees are trained almost on their own. Work instructions are easily created and always up to date in digital form.
Read story
Why Phoenix Mecano

Why you should choose the Setago.io worker assistance system

Haken Icon

Interfaces for external devices

Scanners, torque wrenches, robots, etc.

Haken Icon

Data backup

Selectable in the cloud or on-premises

Haken Icon

Test for free

30-day test incl. introductory meeting

Price overview

Start digitizing your production now!
Starter package (worker assistance system) offers an easy introduction to digitalization with digital work and assembly instructions.
Plus package extends the starter package with hardware connections such as pick-bylight sensors, torque wrenches or the integration of digital inspection checks.
Pro package the all in one. Additional PDA system with ERP connection shows live order data and records set-up and production times and quantities.

STARTER

SETAGO Worker Assistance System
149 €/mo
  • License package incl. 1 workstation
  • Manage and provide work instructions digitally
  • Secure know-how and document standards

    Easily secure know-how and document standards

    ?
  • Instructions are always available and updated

    Instructions are always available and updated in no time

    ?
  • Faster training of employees

    Intuitive support and faster training of employees

    ?

    Additional purchase options

    Each additional workstation: 19 € / month

PLUS

Pack STARTER + hardware connection
349 €/mo
  • License package incl. 1 workstation
  • Connect hardware and ensure quality standards

    Connect hardware elements and ensure quality standards

    ?
  • Connect hardware such as Pick by Light sensors

    Connect hardware components such as Pick by Light sensors

    ?
  • Digital inspection controls and capture process data

    Additional digital inspection controls and capture of process data

    ?
  • API access for your requirements

    API access for your individual requirements

    ?

    Additional purchase options

    Each additional workstation: €33 / month

PRO

Package PLUS + PDA system
899 €/mo
  • License package incl. 1 workstation
  • Increase productivity thanks to live data

    Increase productivity thanks to live data such as orders or quantities from the ERP

    ?
  • ERP connection

    Display live production data at any time thanks to ERP connection

    ?
  • Record set-up and production times

    Record set-up and production times and quantities

    ?
  • Digital processes through to delivery

    Digital processes from picking to delivery

    ?

    Additional purchase options

    Each additional workstation: €39 / month
