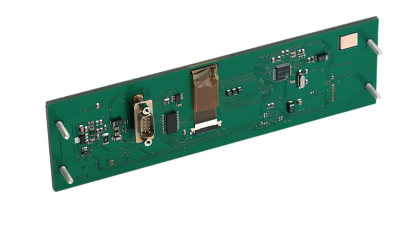

This is how your membrane keypad with a FR4 circuit board becomes a complete success
Idea / Concept
Send a sketch, CAD data or we visit you on site and record the requirements
Construction with all technical features, buttons, colors and shape
Approval by the client and “good to print”
Production pilot series
Production of the pilot series. On request with initial sample test report
Production of membrane keypads or input units
Assembly on housing
Mounting of the membrane keypad on an housing or front panel
After the feasibility check and the quotation phase, our specialists create a detailed release drawing (good for printing) with all relevant data of your membrane keypad. This drawing shows materials, color definitions (in RAL or Pantone) as well as the conductor paths and the electrical circuit diagram. During this phase, any changes you wish to make can be incorporated into the design without incurring any costs. After approval we start the production of the pilot series.
Ideally we like to combine our membrane keypads directly with one of our enclosures to a complete operating unit. If this cut is made directly by us, you can be sure that the membrane keypad has been assembled correctly and you will not have any rejects due to possible assembly errors. In addition, your stock-keeping is reduced.
