Mylardom technology

Mylardom Membrane Keypads – The low cost technology

The Mylardom technology is an inexpensive alternative to realize a functional membrane keypad without snap domes. Since this technology can withstand fewer switching cycles than a keypad with snap domes, it is primarily used where the keys are rarely needed. For example, in heating or ventilation control systems.

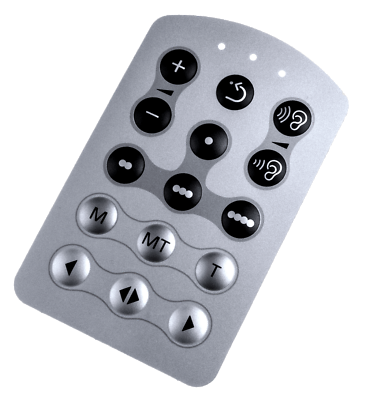

Mylardom Folientastatur ohne Schnappscheiben
Mylardom Folientastatur ohne Schnappscheiben
No snap domes necessary
Inexpensive
Up to 20,000 actuations
Project current

How to make your Mylardom membrane keypad a complete success

Würfel Icon Idea / Concept

Send a sketch, CAD data or we visit you on site and record the requirements

Pinsel Icon Engineering

Construction with all technical features, buttons, colors and shape

Haken Icon Approval

Approval by the client and “good to print”

Pfeil Icon Production pilot series

Production of the pilot series. On request with initial sample test report

Lastwagen Icon Series production

Production of membrane keypads or input units

Schleife Icon Assembly on housing

Mounting of the membrane keypad on an housing or front panel

After the feasibility check and the quotation phase, our specialists create a detailed release drawing (good for printing) with all relevant data of your membrane keypad. This drawing shows materials, color definitions (in RAL or Pantone) as well as the conductor paths and the electrical circuit diagram. During this phase, any changes you wish to make can be incorporated into the design without incurring any costs. After approval we start the production of the pilot series.

Ideally we like to combine our membrane keypads directly with one of our enclosures to a complete operating unit. If this cut is made directly by us, you can be sure that the membrane keypad has been assembled correctly and you will not have any rejects due to possible assembly errors. In addition, your stock-keeping is reduced.

Your contact person

Interested in our Mylardom membrane keypads? Then contact us.

Foto Michael Ebert
Michael Ebert
Konstruktion / Projektleiter Sales Folientastaturen und elektrotechnische Komponenten
Design / Project Manager Sales Membrane Keypads and Electrotechnical Components
Construction / Responsable de projet Sales Claviers à membrane et composants électrotechniques
+41 52 742 75 63
michael.ebert@phoenix-mecano.ch
Online Termin buchen

Handgehäuse mit Folientastatur, Display und zwei Joysticks
Handgehäuse mit Folientastatur, Display und zwei Joysticks
Bopla Logo

Membrane keypad with display

BoPad hand-held casing with membrane keypad and display
Front cover mechanically machined for joystick, display, and membrane keypad cable
Membrane keypad with profiline technology for a strong feel
Front foil with cutout for display
Aluminium Druckgussgehäuse blau und grau lackiert mit Folientastatur
Aluminium Druckgussgehäuse blau und grau lackiert mit Folientastatur

Die-cast aluminum housing with membrane keypads

Tool making and series production of the die-cast components
2-color painting of the die-cast parts
Manufacturing of the membrane keypad with display window
Complete assembly of the parts incl. mounting of the membrane keypad
