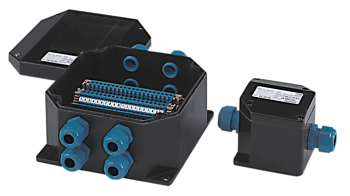

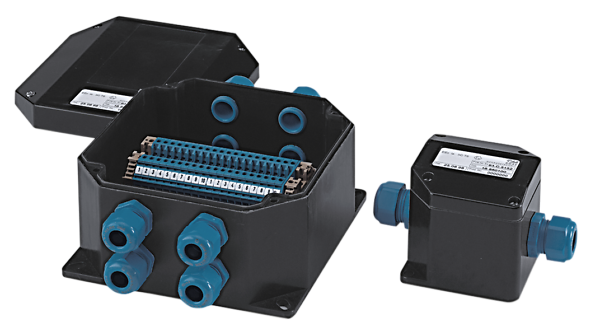

Ex ATEX Exia Polyester Okta Box mit Klemmen und Kabelverschraubungen
Ex ATEX Exia Polyester Okta Box mit Klemmen und Kabelverschraubungen

Ex ATEX Okta Box enclosure

Glass fiber reinforced polyester enclosures for use in ATEX areas
  • Version as empty enclosure for individual installations and Ex e / Ex ia terminal enclosure
  • Enclosure with external fixing lugs
  • Production according to EC directive 94/9 (ATEX 100a)

Enclosure Material:

glass fiber reinforced, thermoset polyester with graphite additive

Colour:

similar to RAL 9011, graphite black

Protection Class:

IP 66 according to EN 60529

Explosion Protection:

Ex II 2 G / 2 D

Ex e II T6 (increased safety)

Ex ia IIC T6 (intrinsic safety)

Ex e(ia) IIC T6 (mixed equipment)

Test certificates:

Empty enclosure: PTB 01 ATEX 1061U

Terminal enclosure: PTB 00 ATEX 1002

Burning behavior:

V0 / self-extinguishing, UL 94

Impact resistance:

> 7 Joule nach EN 50014

Temperature resistance:

-20° C to +40° C (corresponds to T6 = 85° C surface temperature)

-20° C to +55° C (corresponds to T5 = 100° C surface temperature)

-20° C to +90° C (corresponds to T4 = 135° C surface temperature)

Temperatures down to -55° C with separate marking on request

Scope of delivery:

Empty enclosure: enclosure with silicone seal

Terminal enclosure: enclosure system - depending on the version with silicone seal, offshore plate, mounting rail, internal ground connection, terminals, machining, cable glands.

Accessories:

  • Hexagon socket cover screws
  • Sealable cover screws
  • Mounting rails and clamps
  • Cable glands
  • Protective conductor busbar
  • Off-shore plate
Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more
Services

Benefit from our services for Ex ATEX enclosures

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt
Engraving / laser marking
Beschaffung
Procurement
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse
Assembly
Gehäuse einschweissen in Plastikfolie
Packing and logistics
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing of Ex ATEX enclosures

We machine the enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more
Beschaffung

Procurement of components

As a full-range supplier of enclosures, it is part of our standard to also procure components that we assemble for you. Send us a parts list for this purpose and you will receive a ready-assembled enclosure.

Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse

Assembly

Our assembly is set up to deliver the enclosures to you fully assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more
Gehäuse einschweissen in Plastikfolie

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.
