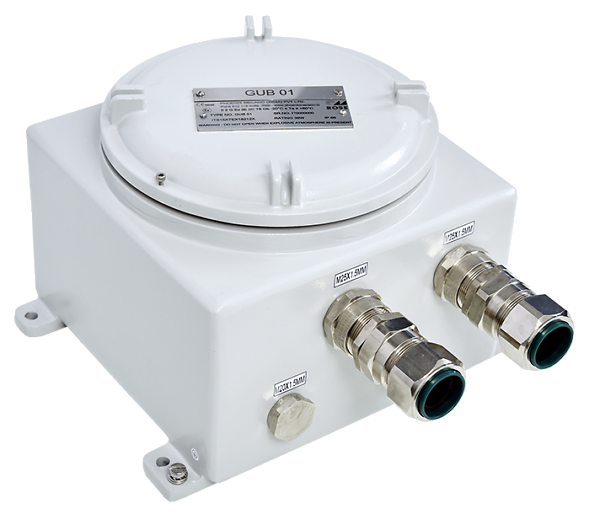

Ex-d IIC enclosure series GUB

Pressurized aluminum enclosure GUB for installation of non-Ex certified components

The enclosure series GUB is used in hazardous areas where gases of group IIC are present. The enclosures are used as terminal boxes for components such as terminals, fuses, transformers, etc. which are mounted on a mounting plate. The enclosures are usually delivered fully assembled and wired. The cover of these housings is screwable.

Enclosure Material:

copper free aluminum


similar to RAL 7035, light gray

Protection Class:

IP 66 according to EN 60529

Explosion Protection:

II 2 G Ex db IIC T6/T5/T4 Gb

II 2 D Ex tb IIIC T80 °C...T130 °C Db

Test certificates:

ITS 15 ATEX 18212X

IECEx ITS 15.0011X

Impact resistance:

7 joules following EN 60079-0

Temperature resistance:

-20° C to +75° C

Scope of delivery:

Enclosure system consisting of base and cover, external ground connection and mounting plate
