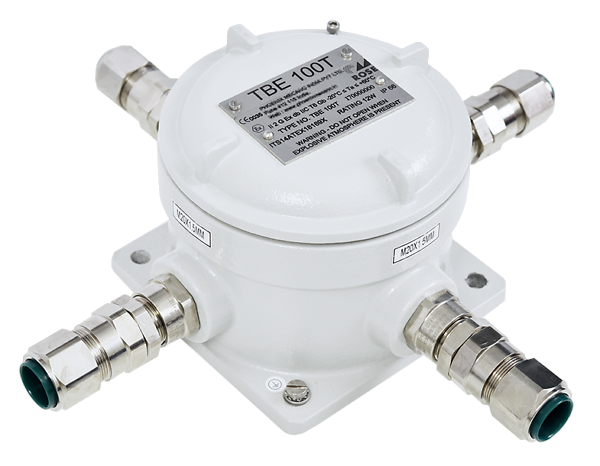

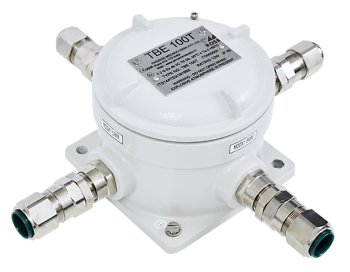

Ex-d IIC enclosure series TBE

Pressurized enclosures made of aluminum and stainless steel for the installation of non-Ex certified

The Ex-d enclosures of the TBE series are mainly used as distribution boxes or terminal boxes for power distribution in hazardous areas. The enclosures have prefabricated threads for Ex-d cable glands. The application area is where gases of group IIC are present. Depending on the requirements, the enclosures can be made of aluminum or stainless steel.

Enclosure Material:

copper free aluminum
Stainless steel 1.4404/316L


Aluminum: similar to RAL7035, light gray.
Stainless steel: unpainted. Painting as option

Protection Class:

IP 66 according to EN 60529

Explosion protection:

II 2 G Ex db IIC T6/T5 Gb

II 2 D Ex tb IIIC T80 °C...T95 °C Db

Test certificates:

ITS 14 ATEX 18169X

IECEx ITS 14.0070X

Impact resistance:

7 joules following EN 60079-0

Temperature resistance:

Standard: -60° C to + 75° C

Scope of delivery:

Enclosure system consisting of lower part and cover, mounting plate and external ground connection as well as seal

Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more

Benefit from our services for Ex ATEX enclosures

Mechanical processing
Engraving / laser marking
Packing and logistics

Mechanical processing of Ex ATEX enclosures

We machine the enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more

Procurement of components

As a full-range supplier of enclosures, it is part of our standard to also procure components that we assemble for you. Send us a parts list for this purpose and you will receive a ready-assembled enclosure.


Our assembly is set up to deliver the enclosures to you fully assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.

Your contact person

Are you interested in our ATEX enclosures and services? Please send us your draft or STEP file to get a quote.
