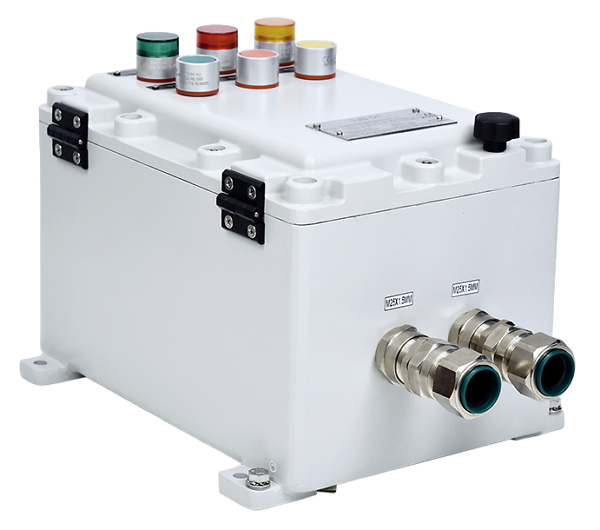

Ex-d Alu Gehäuse IJB mit Taster und Kabelverschraubungen
Ex-d Alu Gehäuse IJB mit Taster und Kabelverschraubungen

Ex-d IIB+H2 Enclosure series IJB

Pressurized aluminum enclosures IJB for installation of non-Ex certified components and terminals

The IJB series of Ex-d aluminum enclosures are for use in gas group IIB + H2. In contrast to the EJB series, the ignition gap is on the inside, which provides more space for components. The housings are assembled, fitted and wired to customer specifications. Due to the flameproof housing, components can be installed that do not have Ex approval. IJB Ex-d enclosures are cost-effective and are used in various industries, such as the process industry. Optionally, the housing can also be equipped with a viewing window.

Enclosure Material:

copper free aluminum


similar to RAL7035, light gray

Protection Class:

IP 66 according to EN 60529

Explosion Protection:

III 2 G Ex db IIB + H2 T6/T5/T4 Gb

II 2 D Ex tb IIIC T80 °C...T130 °C Db

Test certificates:

ITS 15 ATEX 18301X


Impact resistance:

7 joules following EN 60079-0

Temperature resistance:

Standard: -20° C to + 75° C

Scope of delivery:

enclosure system consisting of lower part and cover with screws and external ground connection, hinge and mounting plate

Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more

Benefit from our services for Ex ATEX enclosures

Mechanical processing
Engraving / laser marking
Packing and logistics

Mechanical processing of Ex ATEX enclosures

We machine the enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more

Procurement of components

As a full-range supplier of enclosures, it is part of our standard to also procure components that we assemble for you. Send us a parts list for this purpose and you will receive a ready-assembled enclosure.


Our assembly is set up to deliver the enclosures to you fully assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.
