Ex Schaltschrank Edelstahl
Ex Schaltschrank Edelstahl

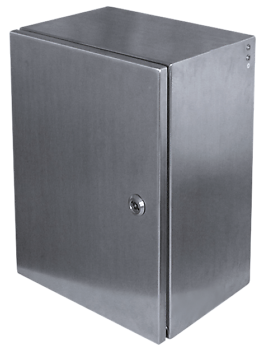

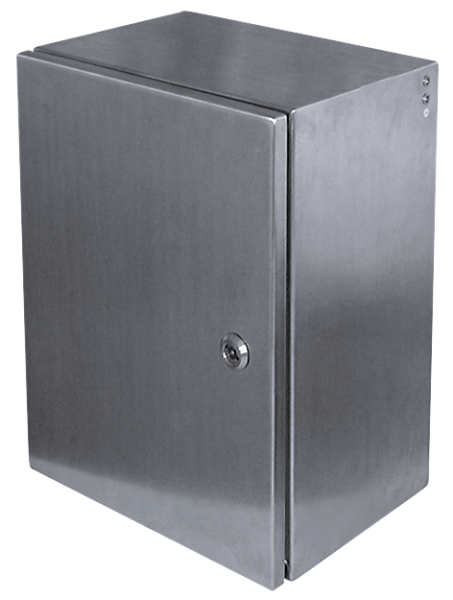

Ex ATEX stainless steel cabinets

High quality stainless steel cabinets for aggressive environments according to ATEX directive

Version as empty enclosure for individual installations and Ex e / Ex ia terminal enclosure
With concealed hinges and double-bit lock

Enclosure Material:

glass fiber reinforced, thermoset polyester with graphite additive


similar to RAL 9011, graphite black

Protection Class:

IP 66 according to EN 60529

Explosion Protection:

Ex II 2 G / 2 D

Ex e II T6 (increased safety)

Ex ia IIC T6 (intrinsic safety)

Ex e(ia) IIC T6 (mixed equipment)

Test certificates:

Terminal housing: PTB 00 ATEX 1002

Empty housing: PTB 01 ATEX 1061U

Burning behavior:

V0 / self-extinguishing, UL 94

Impact resistance:

> 7 joules according to EN 50014

Temperature resistance:

-20° C to +40° C (corresponds to T6 = 85° C surface temperature)

-20° C to +55° C (corresponds to T5 = 100° C surface temperature)

Temperatures down to -55° C with separate marking on request

Scope of delivery:

Empty housing: housing with silicone seal and square closure

Terminal enclosure: Enclosure system - depending on the version with silicone seal, square closure, offshore plate, mounting rail, internal ground connection, terminals, machining, cable glands.


Mounting plates
External mounting plates
Triangular fastener 8 mm
Square lock 7 mm
Square lock 8 mm
Mounting rails and clamps
Cable glands

Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more

Benefit from our services for Ex ATEX enclosures

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt
Engraving / laser marking
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse
Gehäuse einschweissen in Plastikfolie
Packing and logistics
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing of Ex ATEX enclosures

We machine the enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more

Procurement of components

As a full-range supplier of enclosures, it is part of our standard to also procure components that we assemble for you. Send us a parts list for this purpose and you will receive a ready-assembled enclosure.

Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse


Our assembly is set up to deliver the enclosures to you fully assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more
Gehäuse einschweissen in Plastikfolie

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.

Your contact person

Are you interested in our ATEX enclosures and services? Please send us your draft or STEP file to get a quote.
