Ex stainless steel flange ProtEx

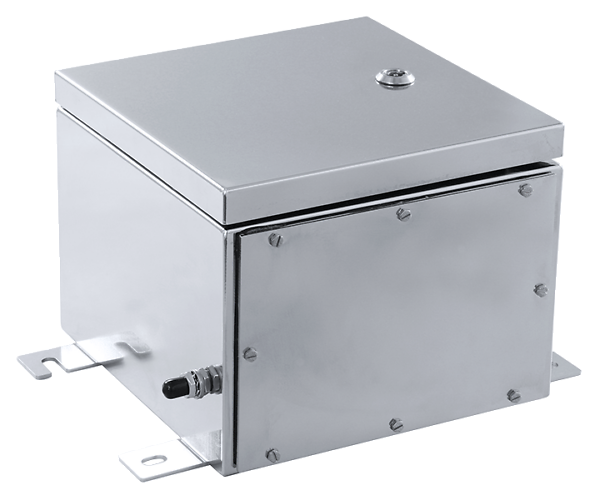

Ex stainless steel flanged enclosure ProtEx
  • Version as empty enclosure for individual installations and Ex e / Ex ia terminal enclosure
  • Standard 1 flange opening; optionally expandable up to 4

Enclosure Material:

Stainless steel 1.5 mm, 1.4404/316L

Protection Class:

IP 66 according to EN 60529

Explosion Protection:

II 2G Ex e IIC T6/T5/T4 Gb

II 2G Ex ia IIC T6/T5/T4 Gb

II 2G Ex d e ia [ia] mb IIC T6/T5/T4 Gb

II 3G Ex e d mb ia [ia] nA nC [op is] IIC T6, T5, T4 Gc

II 2D Ex tb IIIC T85°C/T100°C/T135°C Db IP66

Test certificates:

PTB 00 ATEX 1101U

IECEx PTB 07.0059U

EAC № TC RU C-DE.AA87.B.00971

Impact resistance:

7 joules according to EN 60079-0

Temperature resistance:

Ex B: -55° C to +135° C
other seals/versions see Ex-certificate

Surface:

ground, grain 240

other surface on request

Scope of delivery:

Empty enclosure: Enclosure with hinged cover, double-bit lock, flange plates (3 mm), silicone cover and flange gasket, welded-on outer lugs, M10 outer earth bolt, inner fixing bolt, from size 9 with cover installation unit.
Terminal enclosure: Enclosure system - as before - but with individual equipment, mounting rail, terminals, cable glands.

Accessories:

  • Mounting plates
  • Mounting rail and clamps
  • External mounting brackets
  • Protective conductor busbar / protective conductor mounting bracket
  • Cable glands
  • External joint
  • Mounting set (sealing washer, nuts and screws)
