Geräteträger GTK80
Geräteträger GTK80

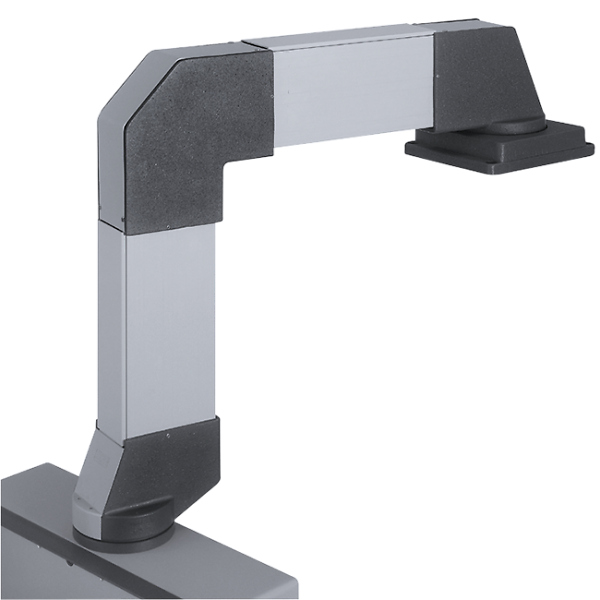

Equipment carrier GTK 80

Industrial square gear tray system GTK 80 with open cable duct for large loads
  • Modular design with wall, top or floor adaptation
  • Freely accessible cable duct

Enclosure Material:

Connecting tube: Square ST 37 similar to DIN EN 10305-5

Wall thickness 5 mm or 8 mm

Components: Cast iron with nodular graphite or cast aluminum

Cable duct / cover: extruded aluminum profile

Bearing: Ball bearing

Bellows: textile fabric


Cable duct / cover: RAL 7035, light gray

Components: RAL 7043, traffic gray B powder-coated

(special color on request)

Protection Class:

IP 65 according to EN 60529

only connection top flange, housing

Free cable passage:

57 cm⊃2;

Scope of delivery:

System-Einzelkomponent inkl. Kabelkanalabdeckung und Montagematerial

Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more

Benefit from our services for swivel arms

Mechanical processing
Special color

Mechanical processing

We will cut the tubes and profiles of the support arms to length for you free of charge. Please give us the tube lengths. We are also happy to carry out other mechanical processing for you on our CNC machines.

Learn more

Painting in special color

If the color does not correspond to your idea or your company design, we can also paint the support arm systems in your desired color. Just let us know the RAL color, structure and gloss level you require.

Learn more

Assembly of the support arm systems

Our assembly department is equipped to deliver the support arm system completely assembled.
