Tragarmsystem GT48/2 mit Rundrohr
Tragarmsystem GT48/2 mit Rundrohr

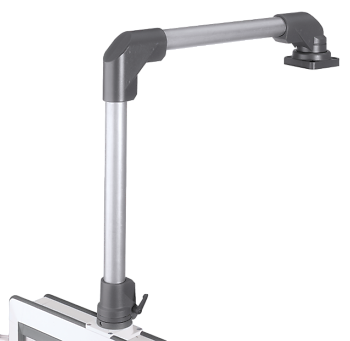

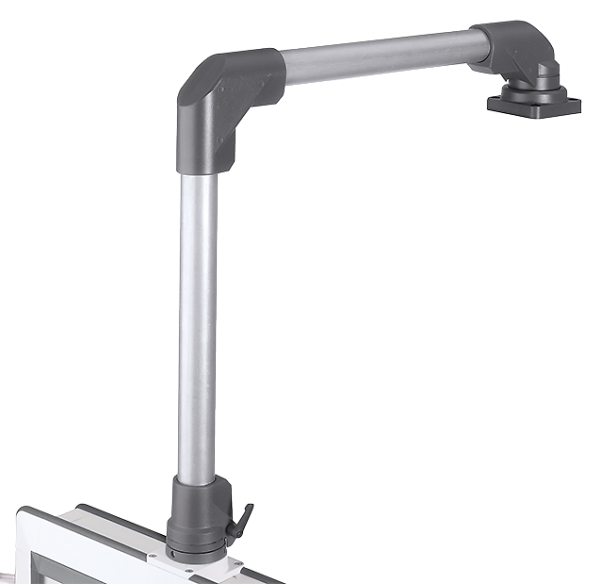

Support arm round tube GT 48/2

Round tube support arm system GT 48/2 for industrial control enclosure
  • Support arm system for top, floor or wall mounting
  • Modular design in vertical and horizontal length
  • Protected, internal cable routing

Enclosure Material:

Connecting tube: Steel 48 x 4 mm DIN 2393-St.37

Components: DIN EN 1706 EN AC-AlSi 12 (Fe)

Protection Class:

IP 54 according to EN 60529

Colour:

Tube: electrogalvanized

Components: RAL 7043, traffic gray powder-coated

(special color on request)

Free cable passage:

Connecting tube: 40 mm Ø

System elements: 40 mm Ø

Scope of delivery:

System single component incl. mounting material

Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog
Rose Tragarm GT 48/2 PDF - DE Interner Link
Rose Tragarm GT 48/2 PDF - EN FR Interner Link Catalog

Show more
Services

Benefit from our services for swivel arms

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Special color
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse
Assembly
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing

We will cut the tubes and profiles of the support arms to length for you free of charge. Please give us the tube lengths. We are also happy to carry out other mechanical processing for you on our CNC machines.

Learn more
Pulverbeschichten von Hand

Painting in special color

If the color does not correspond to your idea or your company design, we can also paint the support arm systems in your desired color. Just let us know the RAL color, structure and gloss level you require.

Learn more
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse

Assembly of the support arm systems

Our assembly department is equipped to deliver the support arm system completely assembled.

Learn more
