Aluform Aluminiumgehäuse
Aluform Aluminiumgehäuse

Aluform aluminum enclosure

Aluminum die-cast enclosures for measurement and control technology
  • Protects valuable electronics
  • High interference radiation EMC protection
  • Rectangular dome arrangement in lid and bottom part

Enclosure Material:

DIN EN 1706 EN AC-AlSi 12 (Fe)

Colour:

similar to RAL 7038, agate gray (special color on request)

Protection Class:

IP 66 according to EN 60529 (higher protection class on request)

Special versions on request:

  • SWB/SBG/SBGL Korrosionsschutz
  • Verschiedene Materialien Deckeldichtungen
  • EMV Ausführung

Impact resistance:

> 7 joules according to EN 50014

IK Code:

09 according to IEC 62262

Temperature resistance:

PUR (polyurethane) seal (standard): -40° C to +90° C

CR-(chloroprene) gasket: -40° C to +100° C

VMQ (silicone) gasket (optional): -60° C to +130° C

Scope of delivery:

Die-cast aluminum enclosure consisting of cover, seal, incl. captive +/- stainless steel screws, lower part with 4 grounding screws.

Accessories:

  • Mounting plates
  • External joints
  • External fastening bar
  • Hexagon socket cover screws
  • Sealable cover screws
  • Mounting rails and clamps
  • Cable glands
Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more
Services

Benefit from our services for aluminum enclosures

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Painting special color
Aluminiumgehäuse passivieren mit Surtec 650
Passivating
Tampondruck auf einem Aluminiumprofil
Printing
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt
Engraving / laser marking
Beschaffung
Procurement
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse
Assembly
Gehäuse einschweissen in Plastikfolie
Packing and logistics
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical machining of aluminum enclosures

We machine the enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more
Pulverbeschichten von Hand

Powder coating in special color

If our standard painting does not correspond to your idea or your company design, we also paint the enclosures in your desired color. Just let us know the desired RAL color, structure and gloss level.

Learn more
Aluminiumgehäuse passivieren mit Surtec 650

Passivate

Our enclosures are passivated with SurTec650. This protects the aluminum from corrosion and also serves as an adhesion primer for painting. However, we can also perform surface treatments such as Alodine. Please contact us.

Learn more
Tampondruck auf einem Aluminiumprofil

Printing

If you would like to have your company logo or inscription on the enclosure, this is no problem. We can print the enclosures for you using pad printing or screen printing processes. For motifs with detailed color gradient we use digital printing on a front foil.

Learn more
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more
Beschaffung

Procurement of components

As a full-range supplier of terminal boxes, it is part of our standard to also procure components that we assemble for you. Send us a parts list for this purpose and you will receive a ready-assembled enclosure.

Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse

Assembly

Our assembly is set up to deliver the terminal boxes to you fully assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more
Gehäuse einschweissen in Plastikfolie

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.

Your contact person

Contact us if you are intested in our aluform die cast enclosures and services. Our motivated employees are happily at your service.

Foto Felix Klingler
Felix Klingler
Projektleiter Sales Gehäusetechnik
Project Manager Sales Enclosure technology
Responsable de projet Sales Technique des boîtiers
+41 52 742 75 17
felix.klingler@phoenix-mecano.ch
Online Termin buchen

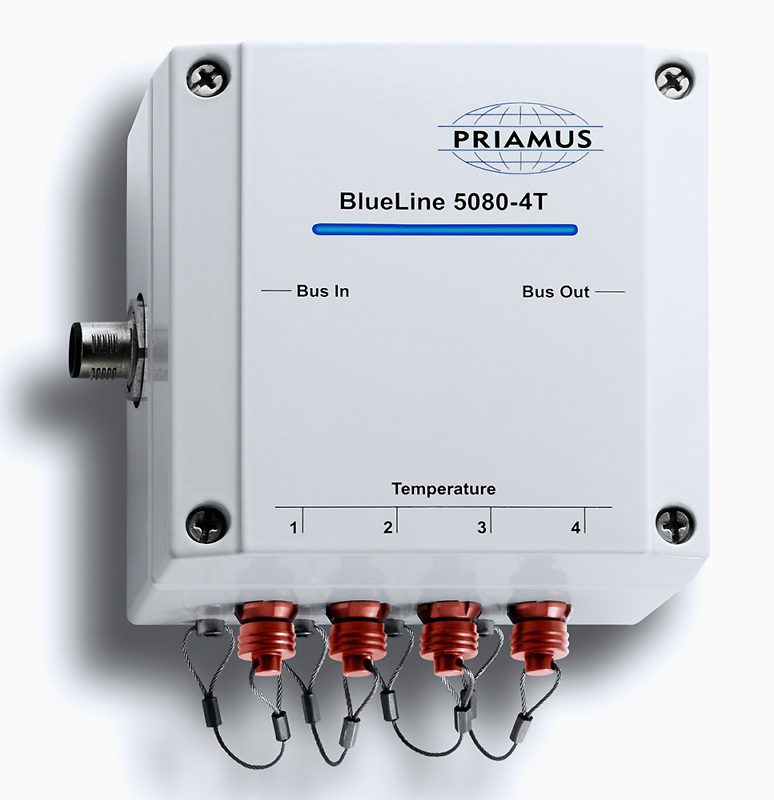

Auminiumgehäuse weiss lackiert und Tampondruck auf Deckel
Auminiumgehäuse weiss lackiert und Tampondruck auf Deckel

Aluminum housing machined and painted

Aluminum housing painted white
Lower part of the housing machined according to drawing
The plug contacts are free of paint
Pad printing 2 colors on cover

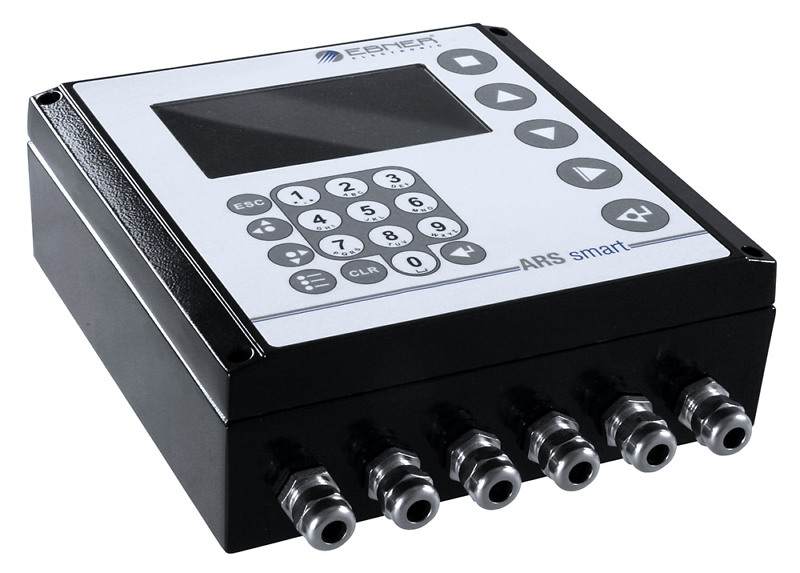

Schwarz lackiertes Aluminiumgehäuse mit Folientastatur auf dem Deckel und Kabelverschraubungen
Schwarz lackiertes Aluminiumgehäuse mit Folientastatur auf dem Deckel und Kabelverschraubungen

Aluminum housing with membrane keypad

Aluminum enclosure painted black
Lower part of the housing machined according to drawing
Depth milling in the cover to accommodate the membrane keypad
Mounting of the cable glands

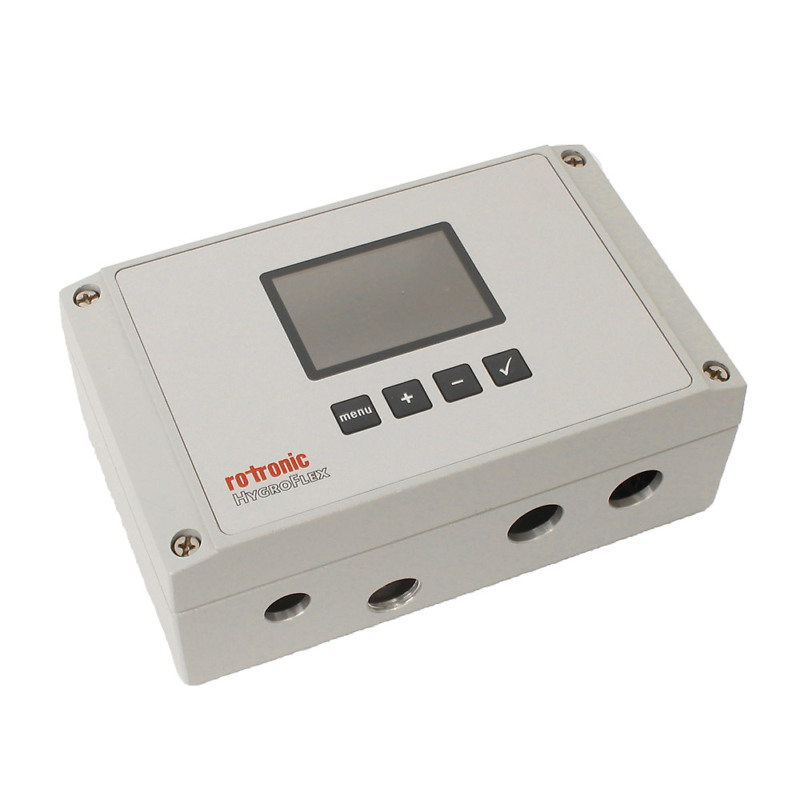

Aluminiumgehäuse grau lackiert mit Folientastatur auf Deckel
Aluminiumgehäuse grau lackiert mit Folientastatur auf Deckel

Aluminum mold housing with membrane keypad

Aluminum enclosure painted gray
Lower part of the housing machined according to drawing
Depth milling in the cover to accommodate the membrane keypad
Design and series production of membrane keypad
Fitting of the membrane keypad
