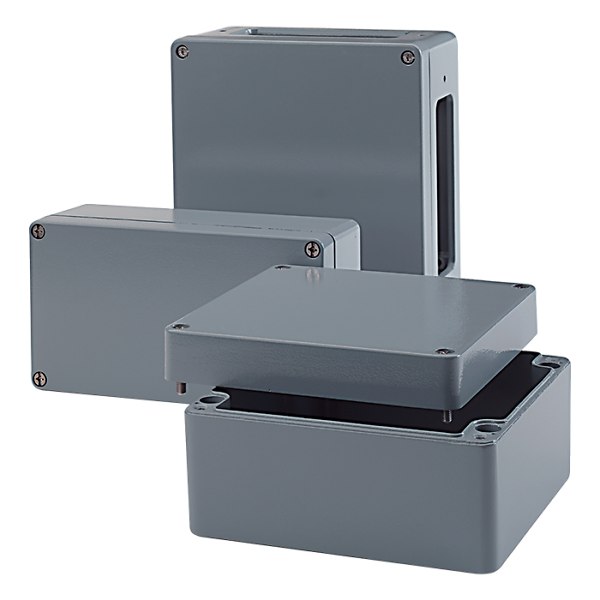

Aluminum enclosure standard

Rugged aluminum terminal box
  • Mounting options for DIN rails and mounting plates
  • Equipped with terminals and cable glands
  • Applicable in wide temperature ranges
  • High EMC protection

Enclosure Material:

DIN EN 1706 EN AC-AlSi 12 (Fe)


similar to RAL 7001, silver gray (special color on request)

Protection Class:

IP 66 according to EN 60529 (higher protection class on request)

Special versions on request:

SWB/SBG/SBGL Corrosion protection
Various cover gaskets
EMV version
Quick lock
Rotary bolt lock

IK Code:

09 according to IEC 62262

Temperature resistance:

PUR (polyurethane) seal (standard): -40° C to +90° C
CR-(chloroprene) gasket: -40° C to +100° C

VMQ (silicone) gasket (optional): -60° C to +130° C

Scope of delivery:

Aluminum enclosure consisting of cover, seal, incl. captive +/- stainless steel screws, bottom part with 2 or 4 grounding screws

Impact resistance:

>7 joules according to EN 50014


  • Mounting plates
  • External joints / Internal joints
  • External mounting plates
  • Hexagon socket cover screws
  • Sealable cover screws
  • Mounting rails and terminal blocks (manufacturer's choice)
  • Cable glands
Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more

Benefit from our services for aluminum enclosures

Mechanical processing
Painting special color
Engraving / laser marking
Packing and logistics

Mechanical machining of aluminum enclosures

We machine the enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more

Powder coating in special color

If our standard painting does not correspond to your idea or your company design, we also paint the enclosures in your desired color. Just let us know the desired RAL color, structure and gloss level.

Learn more


Our enclosures are passivated with SurTec650. This protects the aluminum from corrosion and also serves as an adhesion primer for painting. However, we can also perform surface treatments such as Alodine. Please contact us.

Learn more


If you would like to have your company logo or inscription on the enclosure, this is no problem. We can print the enclosures for you using pad printing or screen printing processes. For motifs with detailed color gradient we use digital printing on a front foil.

Learn more

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more

Procurement of components

As a full-range supplier of terminal boxes, it is part of our standard to also procure components that we assemble for you. Send us a parts list for this purpose and you will receive a ready-assembled enclosure.


Our assembly is set up to deliver the terminal boxes to you fully assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.

Your contact person

Contact us if you are intested in our aluminium enclosures, junction boxes and services. Our motivated employees are happily at your service.

Felix Klingler
Projektleiter Sales Gehäusetechnik
Project Manager Sales Enclosure technology
Responsable de projet Sales Technique des boîtiers
+41 52 742 75 17
Online Termin buchen

Aluminium Gehäuse Standard mehrfarbig lackiert und mechanisch bearbeitet
Aluminium Gehäuse Standard mehrfarbig lackiert und mechanisch bearbeitet
Bopla Logo

Aluminium enclosure standard

High EMC protection
Applicable in wide temperature ranges
Two-colour lacquered
Enclosure mechanically machined according to drawing
Aluminium Gehäuse Standard mit mechanischer Bearbeitung
Aluminium Gehäuse Standard mit mechanischer Bearbeitung
Bopla Logo

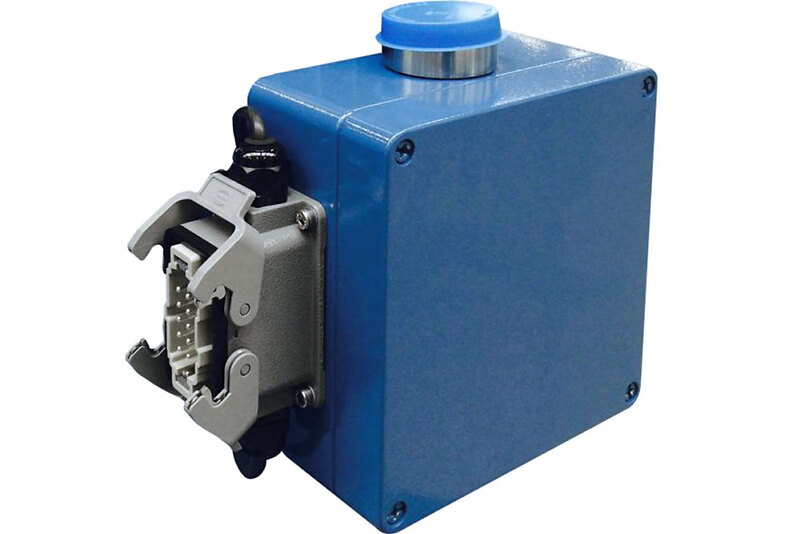

Aluminium enclosure standard

Enclosure blue lacquered
Enclosure mechanically machined according to drawing
High EMC protection
Applicable in wide temperature ranges
