Bocube Alu Gehäuse mit glattem Deckel
Bocube Alu Gehäuse mit glattem Deckel

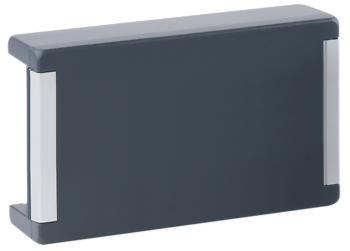

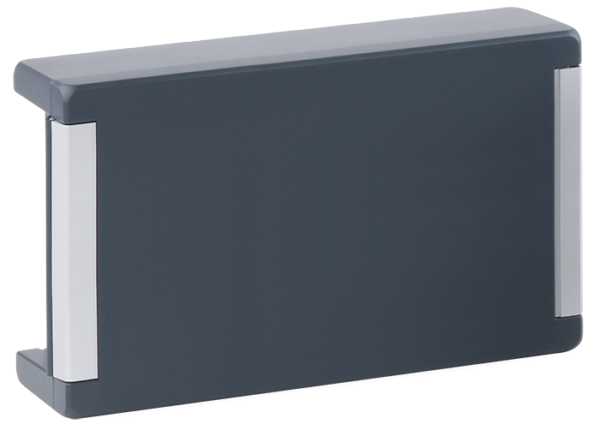

Bocube aluminum enclosure with smooth lid

Aluminum enclosure IP 66 / IP68 (1,2 m - 2 h) / IP 69 with integrated hinge
  • Captive lid with smooth surface
  • Hinge integrated into the case design
  • No visible housing screws
  • Prepared for cost-efficient integration of pressure equalization elements (DAE)
  • Installation space for front panels and scribed boards

Enclosure Material:

enclosure: GD Al Si 12
Gasket PU foamed
Hinges / covers: Al Mg Si 0.5 powder coated / natural color anodized

Colour:

Graphite gray, similar to RAL 7024; Light gray, similar to RAL 7035

Special colors on request

Protection Class:

IP 66 / IP68 (1,2 m - 2 h)  / IP 69 DIN EN 60529
With silicone gasket max. IP66

Scope of delivery:

enclosure incl. seal, hinge and mounting material

Accessories:

  • Wall plates
  • Mounting plates
  • Pressure equalization membrane
  • Support rail
Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more
Services

Benefit from our services for aluminum enclosures

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Painting special color
Aluminiumgehäuse passivieren mit Surtec 650
Passivating
Tampondruck auf einem Aluminiumprofil
Printing
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt
Engraving / laser marking
Beschaffung
Procurement
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse
Assembly
Gehäuse einschweissen in Plastikfolie
Packing and logistics
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical machining of aluminum enclosures

We machine the enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more
Pulverbeschichten von Hand

Powder coating in special color

If our standard painting does not correspond to your idea or your company design, we also paint the enclosures in your desired color. Just let us know the desired RAL color, structure and gloss level.

Learn more
Aluminiumgehäuse passivieren mit Surtec 650

Passivate

Our enclosures are passivated with SurTec650. This protects the aluminum from corrosion and also serves as an adhesion primer for painting. However, we can also perform surface treatments such as Alodine. Please contact us.

Learn more
Tampondruck auf einem Aluminiumprofil

Printing

If you would like to have your company logo or inscription on the enclosure, this is no problem. We can print the enclosures for you using pad printing or screen printing processes. For motifs with detailed color gradient we use digital printing on a front foil.

Learn more
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more
Beschaffung

Procurement of components

As a full-range supplier of terminal boxes, it is part of our standard to also procure components that we assemble for you. Send us a parts list for this purpose and you will receive a ready-assembled enclosure.

Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse

Assembly

Our assembly is set up to deliver the terminal boxes to you fully assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more
Gehäuse einschweissen in Plastikfolie

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.

Your contact person

Contact us if you are intested in our bocube aluminium enclosures and services. Our motivated employees are happily at your service.

Foto Felix Klingler
Felix Klingler
Projektleiter Sales Gehäusetechnik
Project Manager Sales Enclosure technology
Responsable de projet Sales Technique des boîtiers
+41 52 742 75 17
felix.klingler@phoenix-mecano.ch
Online Termin buchen

Bocube Alu Gehäuse mit glattem Deckel mechanisch bearbeitet
Bocube Alu Gehäuse mit glattem Deckel mechanisch bearbeitet
Bopla Logo

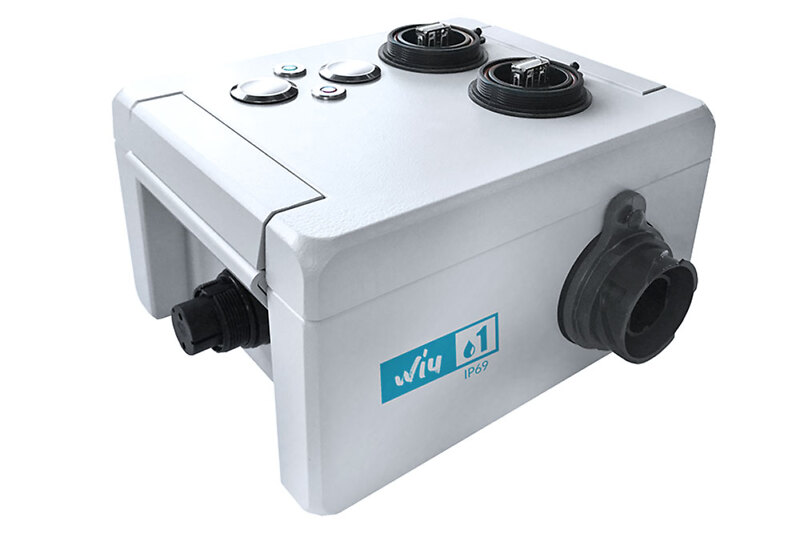

Bocube aluminium enclosure mechanically machined

Smooth, captive lid with integrated hinges
Enclosure mechanically machined on several sides according to drawing
Pad printing 2-colour on the side
Aluminium enclosure white lacquered
Bocube Alu Gehäuse schwarz lackiert und Siebdruck auf Deckel
Bocube Alu Gehäuse schwarz lackiert und Siebdruck auf Deckel
Bopla Logo

Bocube boîtier en aluminium laqué noir

Aluminium enclosure black lacquered
Enclosure bottom mechanically machined according to drawing
Screen printing 4-colour on lid
Smooth, captive lid with integrated hinges
Bocube Alu Gehäuse blau lackiert mit Druck auf Scharnier
Bocube Alu Gehäuse blau lackiert mit Druck auf Scharnier
Bopla Logo

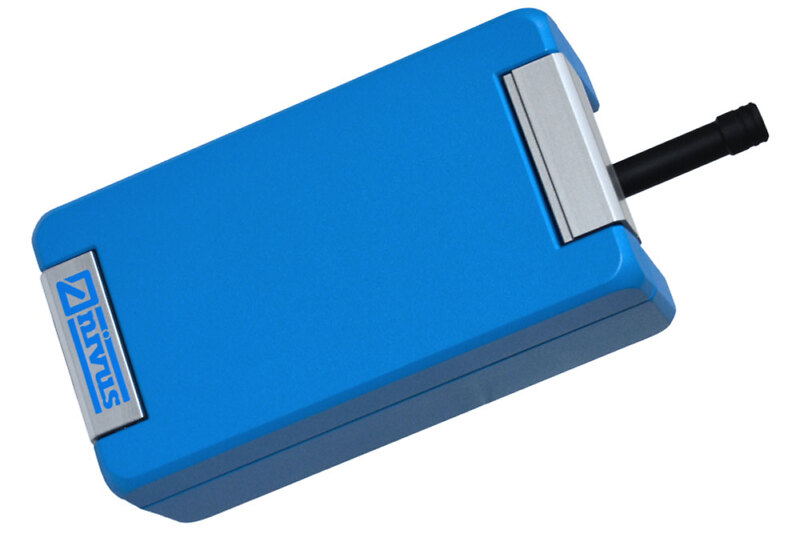

Bocube aluminium enclosure lacquered with smooth lid

No visible enclosure screws
Aluminium enclosure blue lacquered
Enclosures are also available in special colours
Captive lid with smooth surface
