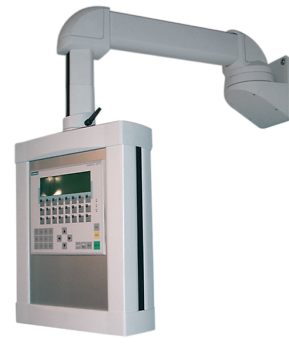

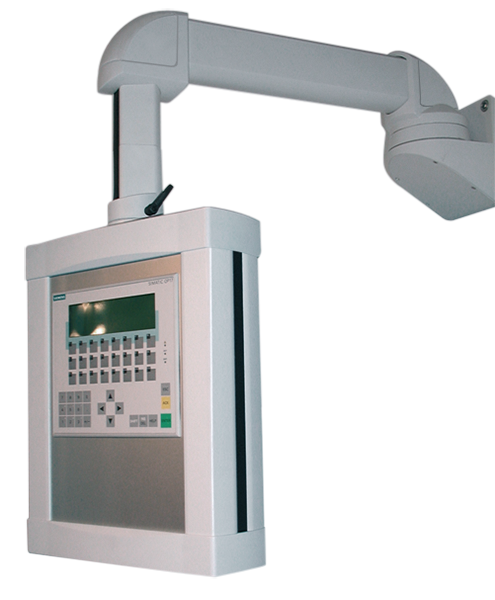

Anzeigegehäuse mit Siemenssteuerung und Tragarm

Command panel Comtronic

Comtronic display enclosure by ROSE

Aluminum profile compact commander in two widths for compact control and display systems
Standard integrated heat dissipation system
External system groove
Variable length design due to profile technology
Versions with and without coupling bore

Enclosure Material:

enclosure profile: DIN EN 573 EN AW-AlMgSi

enclosure cover: DIN EN 1706 EN AC-AlSi 12 (Fe)

Colour:

enclosure body and cover: RAL 7035, light gray

Function insert strips: RAL 9005, deep black

Protection Class:

IP 65 according to EN 60529

Temperature resistance:

-30° C to +65° C

Scope of delivery:

enclosure kabody with rear panel as door or screwed, fastening elements for front panel. Order front panel separately.

Accessories:

Wall mount - CT
Handle set 350 (handle length 350 mm)
Handle set 500 (handle length 500 mm)
Handle set SL
Cover elements 80 for CT 110 (4 pcs.)
Cover elements 120 for CT 145 (4 pcs.)
Novotronic adapter P80
Novotronic adapter P100
Novotronic adapter P160
Fan 60 for CT 110 (1 pc.)
Fan 92 for CT 145 (1 pc.)
Mounting bracket with screws and spring nuts M5 (4 pcs.)
Spring nuts M5 (8 pcs.) for internal mounting
Pushbuttons and switches on request

Alle Downloads zum Produkt auf einem Blick

Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Rose ComTronic PDF - DE Interner Link

Rose ComTronic PDF - EN FR Interner Link Catalog

Services

Benefit from our services for control panel enclosures

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing

Painting special color

Printing

Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt

Engraving / laser marking

Mechanical processing of control panel enclosures

We machine the control panel enclosuresaccording to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more

Painting in special color

If the color does not correspond to your idea or your company design, we also paint the enclosures in your desired color. Just let us know the desired RAL color, structure and gloss level.

Learn more

Printing

If you would like to have your company logo or inscription on the enclosure, this is no problem. We print the enclosures for you using pad printing or screen printing processes. For motifs with detailed color gradient we use digital printing on a front foil.

Learn more

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more
