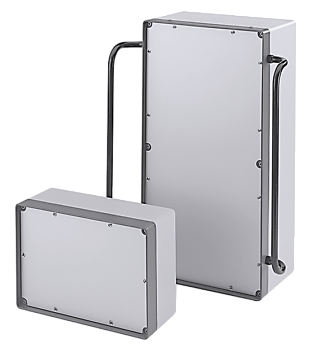

Commander 1 mit Handgriffen

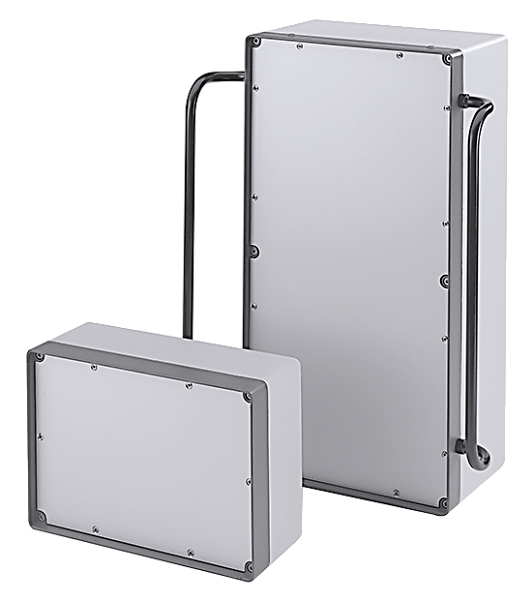

Commander 1 mit Handgriffen

Control panel Commander 1

Small control enclosure made of aluminum with protective collar
  • Control enclosure for the installation of operating units, switches and pushbuttons
  • Individual processing from batch size 1
  • Robust die-cast aluminum housing body with front panel
  • Optionally with transparent cover and handle set.

Enclosure Material:

DIN EN 1706 EN AC-AlSi 12 (Fe)


Body: RAL 7038, agate gray

Front frame: RAL 7043, traffic gray B

Special colors on request

Protection Class:

IP 65 according to EN 60529 (with transparent cover IP 54)

Temperature resistance:

with PUR (polyurethane) seal -60° C to +90° C

with VMQ (silicone) seal -60° C to +130° C

Impact resistance:

> 7 Nm, EN 50014 (housing body)

Scope of delivery:

enclosure body with front frame and mounting screws (2 or 4 pieces), order front panel separately.


  • Front panel
  • Mounting plate
  • Transparent cover with knurled lock
  • Transparent cover with lock
  • Silicone seal
  • Joint outside
  • Joint inside
Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more

Benefit from our services for control panel enclosures

Mechanical processing
Painting special color
Engraving / laser marking

Mechanical processing of control panel enclosures

We machine the control panel enclosuresaccording to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more

Painting in special color

If the color does not correspond to your idea or your company design, we also paint the enclosures in your desired color. Just let us know the desired RAL color, structure and gloss level.

Learn more


If you would like to have your company logo or inscription on the enclosure, this is no problem. We print the enclosures for you using pad printing or screen printing processes. For motifs with detailed color gradient we use digital printing on a front foil.

Learn more

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more
