Minipolyglas Schrank mit und ohne Sichtscheibe
Minipolyglas Schrank mit und ohne Sichtscheibe

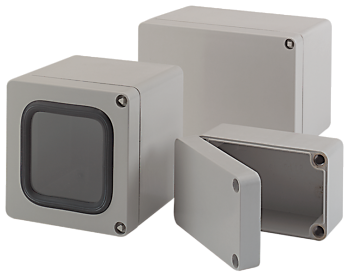

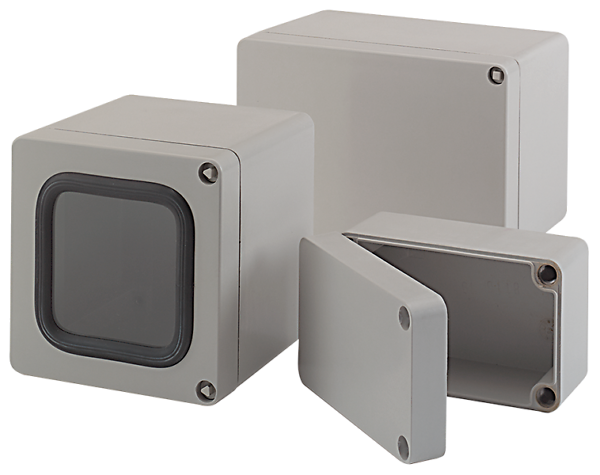

Control cabinets mini Polyglas

Small control cabinets with hidden external hinge
  • Version standard or with viewing pane

Enclosure Material:

glass fiber reinforced thermoset polyester

Colour:

similar to RAL 7038, agate gray (special color on request)

Protection Class:

IP 66 according to EN 60529

Impact resistance:

> 7 joules according to EN 60079-0

Burning behavior:

V0 / self-extinguishing, UL 94

Dielectric strength:

18 KV / mm

Temperature resistance:

-40 C° to +100 C°

Version with viewing pane: -40 C° to +80 C°

Scope of delivery:

enclosure consisting of lower part and door; order door lock separately, press-in bushings in lower part for internal mounting

Closures:

  • Triangular screw 8 mm
  • Square screw 8 mm
  • Square head screw 6 mm
  • Phillips screw
Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more
Services

Benefit from our services for polyester control cabinets

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Special color
EMV Lackierung mit Kupferinnenleitlack
EMC coating
Tampondruck auf einem Aluminiumprofil
Printing
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt
Engraving / laser marking
Beschaffung
Procurement
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse
Assembly
Gehäuse einschweissen in Plastikfolie
Packing and logistics
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing of electrical control cabinets

We machine the enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more
Pulverbeschichten von Hand

Powder coating in special color

If the color does not correspond to your idea or your company design, we also paint the enclosures in your desired color. Just let us know the desired RAL color, structure and gloss level. We also manufacture the enclosures in special granules from approx. 250 pieces.

Learn more
EMV Lackierung mit Kupferinnenleitlack

EMV coating of electrical control cabinets

To protect your electronics from electromagnetic interference, the plastic enclosures can be EMC coated. We use the coating with copper conductive lacquer or an aluminum vaporization.

Learn more

Printing

If you would like to have your company logo or inscription on the enclosure, this is no problem. We print the enclosures for you using pad printing or screen printing processes. For motifs with detailed color gradient we use digital printing on a front foil.

Learn more
Gravierte Frontplatte mit schwarzer Schrift

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more
Beschaffung

Procurement of components

As a full-range supplier of enclosure solutions, it is part of our standard to also procure components that we assemble for you. Send us a parts list and you will receive a ready assembled enclosure.

Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse

Assembly

Our assembly department is equipped to deliver the enclosures ready assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more
Gehäuse einschweissen in Plastikfolie

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.

Your contact person

Are you interested in our plastic polyester cabinets and services? Please send us your draft or STEP file to get a quote.
