Kleines flaches Elektronikgehäuse
Kleines flaches Elektronikgehäuse

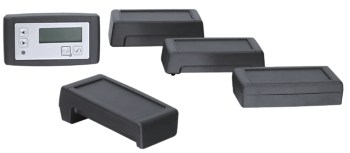

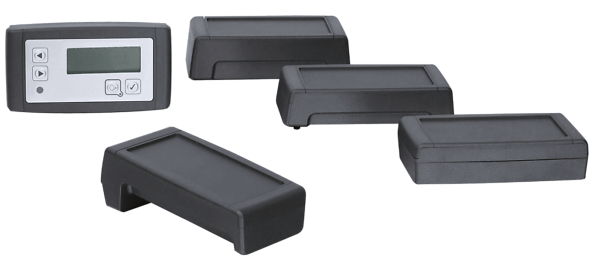

Circum electronics enclosure

The electronics enclosure for table, wall, desktop and control panel mounting applications.

  • 3 basic sizes
  • 3 variant versions
  • 2 colours
  • Consistent design
  • Enclosure screwing system concealed by cover panel
  • Cover panels in different colours
  • Lids available with moulded-on front panels or plug-in front panels
  • Up to 3 PCB levels possible
  • Frame for wall fitting of the control panel mounting types

Colour:

Graphit grey, similar to RAL 7024 or agate grey, similar to RAL 7038; special colours on request

Protection Class:

IP 40/DIN EN 60529

Enclosure Material:

ABS; for details see Technical Information

Accessories:

  • colored cover plates in RAL 3000 (fire red) and RAL 5014 (dove blue)
  • Wall plates
Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more
Services

Benefit from our services for electronic enclosures

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Special color
EMV Lackierung mit Kupferinnenleitlack
EMC coating
Tampondruck auf einem Aluminiumprofil
Printing
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt
Engraving / laser marking
Beschaffung
Procurement
Displaymontage in einem Gehäuse
Assembly / testing
Gehäuse einschweissen in Plastikfolie
Packing and logistics
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing of electronic enclosures

We machine the enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more
Pulverbeschichten von Hand

Powder coating in special color

If our standard painting does not correspond to your idea or your company design, we also paint the enclosures in your desired color. Just let us know the desired RAL color, structure and gloss level.

Learn more
EMV Lackierung mit Kupferinnenleitlack

EMV coating

To protect your electronics from electromagnetic interference, the plastic enclosures can be EMC coated. We use the coating with copper conductive lacquer or an aluminum vaporization.

Learn more
Tampondruck auf einem Aluminiumprofil

Printing

If you would like to have your company logo or inscription on the enclosure, this is no problem. We print the enclosures for you using pad printing or screen printing processes. For motifs with detailed color gradient we use digital printing on a front foil.

Learn more
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more
Beschaffung

Procurement of components

As a full-range supplier of enclosure solutions, it is part of our standard to also procure components that we assemble for you. Send us a parts list and you will receive a ready assembled enclosure.

Displaymontage in einem Gehäuse

Assembly

Our assembly department is equipped to deliver the enclosures ready assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more
Gehäuse einschweissen in Plastikfolie

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.

Your contact person

Are you interested in our electronic enclosures? Please send us your draft or STEP file to get a quote. We happily present to you our services.
