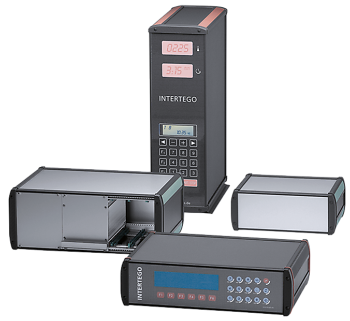

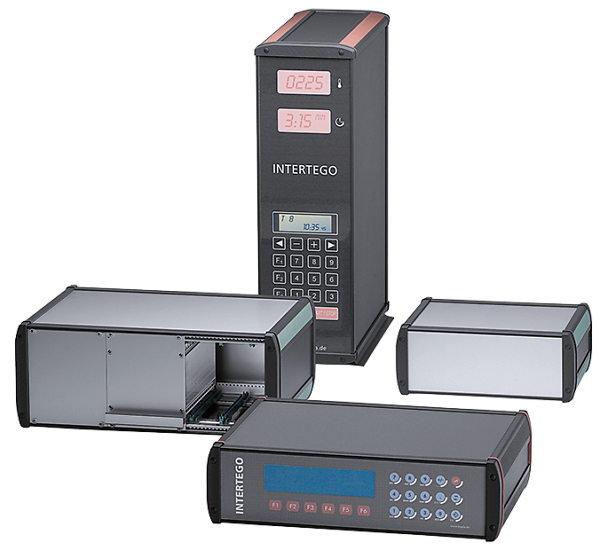

Intertego table enclosure 19 "

Intertego table enclosure 19 " from BOPLA

The Intertego 19 inch desktop enclosure is characterized above all by a high-quality and innovative design. Two heights as well as individual dimensions of the width and depth of the enclosure through profile technology leave plenty of room for installations.

Small upgrades also allow Intertego to become a 19" enclosure. An extensive, innovative range of accessories opens up new application possibilities; in addition, the enclosures can be adapted to the customer's design ideas.

  • 2 different basic heights 2U and 3U
  • individually adaptable in width and depth due to profile technology
  • 19 " application

Colour:

Graphite grey, similar to RAL 7024; special colours on request

Protection Class:

IP 40/DIN EN 60529; with ventilation (ADL) IP 20/DIN EN 60529

Enclosure Material:

Profiles: Al Mg Si 0.5; diecast corners: zinc alloy Z410; seal: TPE. For details see Technical Information.

Scope of delivery::

2 side profiles, 4 front profiles, 4 die-cast corners, 4 decorative elements dark gray and mounting material

Accessories:

  • Decorative strips
  • Decorative elements
  • Cover plates closed (anodized or painted)
  • Cover plates with ventilation (anodized or painted)
  • Aluminum front and rear panels plug-in or screw-on
  • Threaded strips
  • Wall mounting
  • Tower base
  • EMV upgrade kits
  • 19 " flanges
Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more
Services

Benefit from our services for electronic enclosures

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Special color
Tampondruck auf einem Aluminiumprofil
Printing
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt
Engraving / laser marking
Beschaffung
Procurement
Displaymontage in einem Gehäuse
Assembly / testing
Gehäuse einschweissen in Plastikfolie
Packing and logistics
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing of electronic enclosures

We machine the enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more
Pulverbeschichten von Hand

Powder coating in special color

If our standard painting does not correspond to your idea or your company design, we also paint the enclosures in your desired color. Just let us know the desired RAL color, structure and gloss level.

Learn more
Tampondruck auf einem Aluminiumprofil

Printing

If you would like to have your company logo or inscription on the enclosure, this is no problem. We can print the enclosures for you using pad printing or screen printing processes. For motifs with detailed color gradient we use digital printing on a front foil.

Learn more
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more
Beschaffung

Procurement of components

As a full-range supplier of enclosures, it is part of our standard to also procure components that we assemble for you. Send us a parts list for this purpose and you will receive a ready-assembled enclosure.

Displaymontage in einem Gehäuse

Assembly

Our assembly is set up to deliver the terminal boxes to you fully assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more
Gehäuse einschweissen in Plastikfolie

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.
