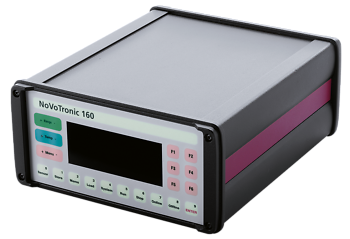

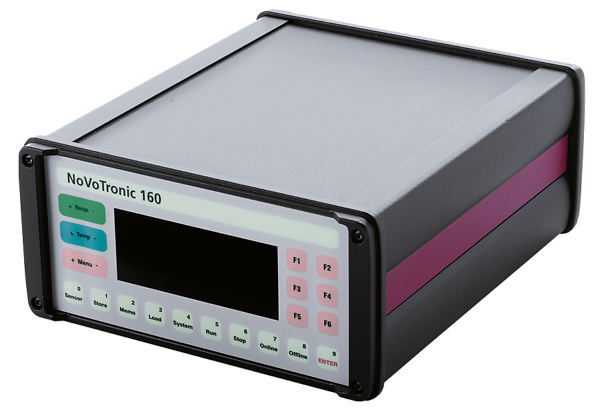

Profilgehäuse aus Aluminium mit Folientastatur auf dem Deckel

NoVoTronic profile enclosure

NoVoTronic electronics enclosure from ROSE

Aluminum profile enclosure system in 5 sizes for data, PC, measurement and control technology
Clamping-free interior due to external screw channels
Integrated guide grooves to accommodate PCBs
External function insert strips (except NoVoTronic 200)
Variable lengths thanks to profile technology

Colour:

enclosure body and housing cover: deep black, RAL 9005

Protection Class:

IP 65, according to EN 60529

Enclosure Material:

enclosure profile: DIN EN 573 EN AW-AlMgSi

enclosure cover: DIN EN 1706 EN AC-AlSi 12 (Fe)

Painting:

powder coated

Temperature resistance:

Seal: -40° C to +90° C

Transparent cover: -40° C to +60° C

Scope of delivery:

enclosure with two die-cast aluminum lids and two function insert strips, not screwed down

Accessories

Wall profile 80 / 100-100
Wall profile 80 / 100-160
Wall profile 80 / 100-200
Wall profile 80 / 100-SL
Wall profile 130 / 160-130
Wall profile 130 / 160-160
Wall profile 130 / 160-200
Wall profile 130 / 160-300
Wall profile 130 / 160-SL
Cover wall holder 80 / 100
NoVo wall bracket P80
NoVo wall bracket P100
NoVo wall bracket P130
NoVo wall bracket P160
Foot / connecting element 80
Foot / connecting element 100
Foot / connecting element 130
Foot / connecting element 160
Battery compartment 9 V block
Battery compartment 4 x AA
Circuit board profile 200-220
Circuit board profile 200-280
PCB profile 200-330
PCB profile 200-SL
Adjustable PCB profile 80 / 100
Adjustable board profile 130
Adjustable PCB profile 160
Transparent cover 160

Alle Downloads zum Produkt auf einem Blick

Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Rose Novotronic PDF - DE Interner Link

Rose Novotronic PDF - EN FR Interner Link Catalog

Services

Benefit from our services for electronic enclosures

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing

Special color

Printing

Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt

Engraving / laser marking

Procurement

Assembly / testing

Packing and logistics

Mechanical processing of electronic enclosures

We machine the enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more

Powder coating in special color

If our standard painting does not correspond to your idea or your company design, we also paint the enclosures in your desired color. Just let us know the desired RAL color, structure and gloss level.

Learn more

Printing

If you would like to have your company logo or inscription on the enclosure, this is no problem. We can print the enclosures for you using pad printing or screen printing processes. For motifs with detailed color gradient we use digital printing on a front foil.

Learn more

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more

Procurement of components

As a full-range supplier of enclosures, it is part of our standard to also procure components that we assemble for you. Send us a parts list for this purpose and you will receive a ready-assembled enclosure.

Assembly

Our assembly is set up to deliver the terminal boxes to you fully assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.
