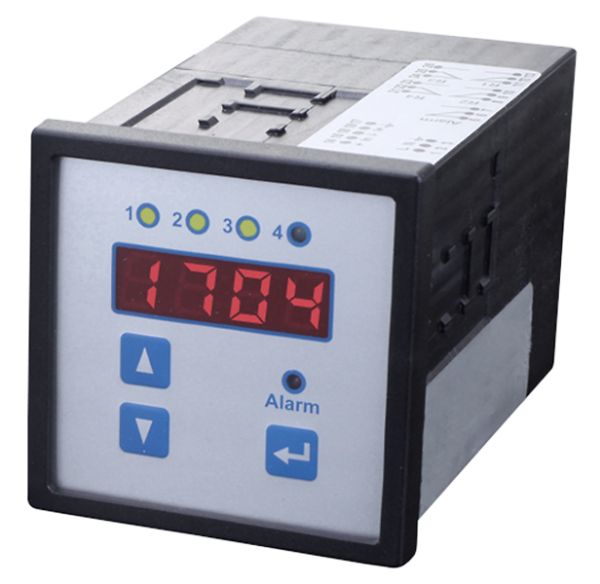

Uninorm Schaltafel Einbaugehäuse mit Folientastatur
Uninorm Schaltafel Einbaugehäuse mit Folientastatur

Uninorm Control panel mounting enclosure

The proven plastic panel mounting enclosure system to DIN 43700 with easy assembly.

36 different versions of these panel mounting enclosures according to DIN IEC 61554 allow the user to always find the right size for his electronics. Spring or screw clips enable mounting in the panel or control cabinet to suit the particular requirements. The front covers made of clear rubber, which are available as accessories, protect the front elements up to protection class IP 65.

Enclosure Material:

Noryl SE1 GFN 1 flammwidrig

Protection Class:

IP 40, mit Klarsichtschutzhaube bis IP 65


ähnlich RAL 9005, schwarz

Scope of delivery:

enclosure, standard front frame, back cover and screws

NGS 9806-GR: housing, standard front frame and 2 clamping elements


  • Front panel anodized 1.5 mm
  • Front panel plastic red translucent
  • Back panel single (included in delivery)
  • Screw clamp
  • Spring clamp
  • Intermediate element
  • DIN retaining clip
  • Gasket housing / panel
  • Gasket front panel / housing
  • Firmly snapping on foil front
  • Fixed latching front frame
  • Clear cover (available on request)
  • Flexible clear cover hood
