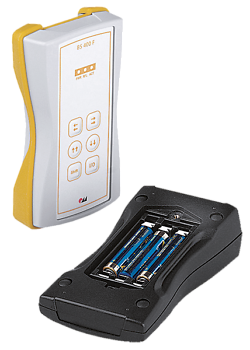

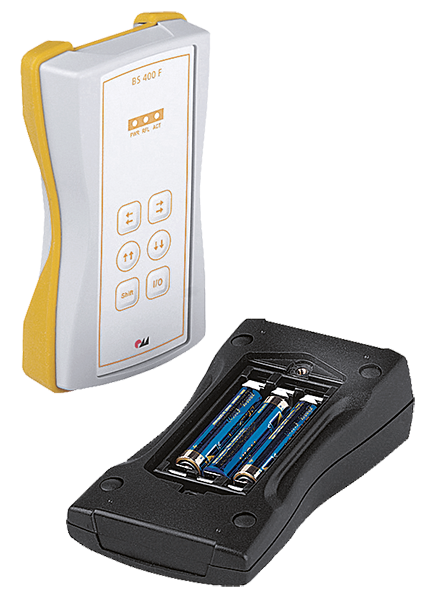

Bos-Streamline membrane keypad with battery compartment

BOS-Streamline hand-held enclosure with foil surface and battery compartment from BOPLA
  • 3 different basic sizes
  • IP 40 or IP 65 (with inserted round cord or decor seal)
  • can be mounted in a console or in parallel
  • battery compartment accessible from outside with protection class IP 66


enclosure: graphite gray, similar to RAL 7024; light gray, similar to RAL 7035 and silver by coating; special color on request

Protection Class:

depending on enclosure design up to IP 65, DIN EN 60529

Enclosure Material:


Temperature resistance:

-40° C to +70° C

Burning behavior:

HB according to UL 94

Dielectric strength:

24 KV / mm according to DIN 53481


  • Decorative seal (signal yellow, signal red, signal blue, signal green or graphite gray, special colors on request)
  • Screw covers (graphite gray or light gray)
Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more

Benefit from our services for handheld enclosure

Mechanical processing
Special color
EMC coating
Engraving / laser marking
Assembly / testing
Packing and logistics

Mechanical processing of handheld enclosures

We machine the Enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more

Painting in special color

If the color does not correspond to your idea or your company design, we also paint the enclosures in your desired color. Just let us know the desired RAL color, structure and gloss level. We also manufacture the enclosures in special granules from approx. 250 pieces.

Learn more

EMV coating of handheld enclosures

To protect your electronics from electromagnetic interference, the plastic enclosures can be EMC coated. We use the coating with copper conductive lacquer or an aluminum vaporization.

Learn more


If you would like to have your company logo or inscription on the enclosure, this is no problem. We print the enclosures for you using pad printing or screen printing processes. For motifs with detailed color gradient we use digital printing on a front foil.

Learn more

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more

Procurement of components

As a full-range supplier of enclosure solutions, it is part of our standard to also procure components that we assemble for you. Send us a parts list and you will receive a ready assembled enclosure.


Our assembly department is equipped to deliver the enclosures ready assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.

Your contact person

Are you interested in our handheld enclosures? Please send us your draft or STEP file to get a quote. We happily present to you our services.
