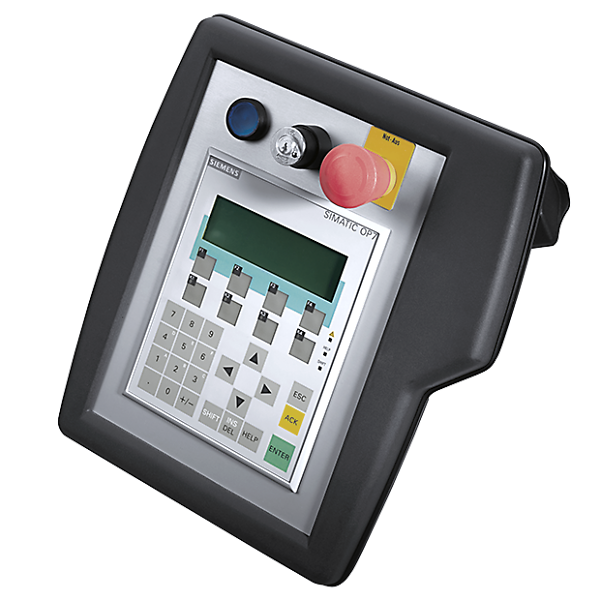

Limanda Handheld Gehäuse mit Siemens OP7 Steuerung und Taster

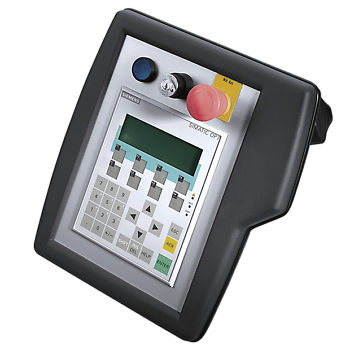

Limanda Handheld Gehäuse mit Siemens OP7 Steuerung und Taster

Limanda hand enclosure

Polyamide handheld enclosure for instrumentation, automation and data acquisition
  • Can be used mobile and stationary for fixtures and command devices
  • Two sizes
  • Large occupancy area
  • Variable installation depths

Enclosure Material:

enclosure: polyamide

Butt edge: NBR, black

Protection Class:

IP 65 according to EN 60529

Colour:

similar to RAL 7021, black-grey

Impact resistance:

> 7 joules according to EN 50014

Burning behavior:

V2 / UL 94

Surface Resistance:

1012 Ohm nach DIN 53482

EMC:

optional

Temperature resistance:

-20° C to +60° C

Scope of delivery:

Double-shell enclosure with upper and lower shell, each with mounting domes incl. seals and butt edge profile. 3 cover flaps for interface garages, screws and fastening material for front panel mounting.

Accessories:

  • Limanda I front panel aluminum, natural anodized
  • Limanda I EMC front panel
  • Limanda II front panel aluminum, natural anodized
  • Limanda I intermediate frame
  • Limanda II installation set for Siemens TP 170 / TP 070
  • Limanda I EMC intermediate frame
  • Limanda I handle set without pushbutton
  • Limanda mounting bracket
  • Limanda I shoulder strap
  • Limanda I quiver
  • Limanda II table stand (set of 2)
  • Limanda II Quiver
  • Limanda I handle set with 3-step enabling switch (right version)
  • Limanda I handle set with 3-stage enabling switch (left version)
  • Cable gland with kink protection M16
  • Cable gland with kink protection M20
  • Cable gland with kink protection M25
  • Inclination adapter for direct mounting on wall or machine
  • Inclination adapter for direct mounting on tube GT 48/2
  • Inclination adapter for direct mounting on tube GTK electronic
  • Inclination adapter for direct mounting to GT48/2 or GTK electronic
  • Tilt adapter for Limanda mount on tube GT 48/2
  • Tilt adapter for Limanda mount on tube GTK electronic
  • Inclination adapter for Limanda mount on wall or machine
  • Pushbuttons and switches
Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more
Services

Benefit from our services for handheld enclosure

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Special color
EMV Lackierung mit Kupferinnenleitlack
EMC coating
Tampondruck auf einem Aluminiumprofil
Printing
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt
Engraving / laser marking
Beschaffung
Procurement
Displaymontage in einem Gehäuse
Assembly / testing
Gehäuse einschweissen in Plastikfolie
Packing and logistics
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing of handheld enclosures

We machine the Enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more
Pulverbeschichten von Hand

Painting in special color

If the color does not correspond to your idea or your company design, we also paint the enclosures in your desired color. Just let us know the desired RAL color, structure and gloss level. We also manufacture the enclosures in special granules from approx. 250 pieces.

Learn more
EMV Lackierung mit Kupferinnenleitlack

EMV coating of handheld enclosures

To protect your electronics from electromagnetic interference, the plastic enclosures can be EMC coated. We use the coating with copper conductive lacquer or an aluminum vaporization.

Learn more
Tampondruck auf einem Aluminiumprofil

Printing

If you would like to have your company logo or inscription on the enclosure, this is no problem. We print the enclosures for you using pad printing or screen printing processes. For motifs with detailed color gradient we use digital printing on a front foil.

Learn more
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more
Beschaffung

Procurement of components

As a full-range supplier of enclosure solutions, it is part of our standard to also procure components that we assemble for you. Send us a parts list and you will receive a ready assembled enclosure.

Displaymontage in einem Gehäuse

Assembly

Our assembly department is equipped to deliver the enclosures ready assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more
Gehäuse einschweissen in Plastikfolie

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.
