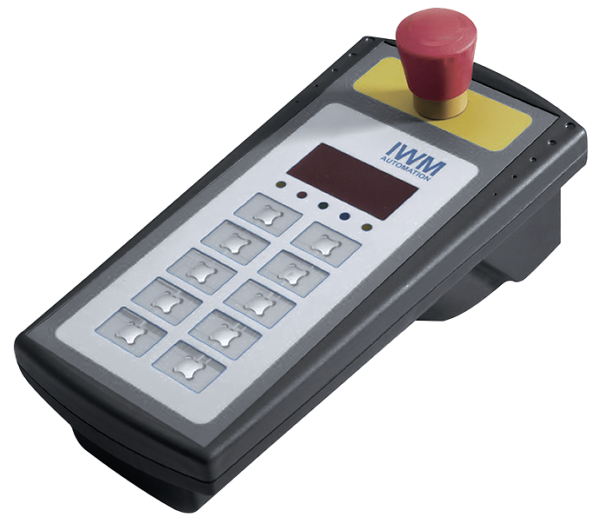

Handgehäuse mit Folientastatur und Not-Aus
Handgehäuse mit Folientastatur und Not-Aus

Handheld enclosure Pilot 250

Polyamide hand-held operating enclosure for instrumentation and automation technology
  • Robust enclosure with high protection class
  • Distinctive grip area for mobile use
  • Prepared for cable gland
  • Ideal for holding switches, pushbuttons and membrane keypads
  • Version with closed or front frame cover
  • Battery compartment at the rear
  • Optional EMC version with internal coating and EMC seal

Enclosure Material:

Polyamid

Protection Class:

IP 65 according to EN 60529

Colour:

base and top cover: similar to RAL 7021, black-grey

back cover: similar to RAL 5003, sapphire blue

Impact resistance:

> 7 joules according to DIN 50014

Temperature resistance:

-40° C to +60° C

Scope of delivery:

Double-shell enclosure with top and bottom shells, each with mounting domes, battery compartment cover, mounting and housing screws

Accessories:

  • Aluminum front plate for Pilot 250/2
  • Magnet holder round
  • Battery holder for mounting in the lower part of the housing for 4 Mignon cells
  • Battery holder for mounting in the lower part of the housing for 9 V block
  • Wall holder (2 hooks, 2 bolts with screws)
  • Cable entry with kink protection M16 x 1.5
  • Cable entry with kink protection M20 x 1.5
  • Pushbutton and switch
Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more
Dienstleistungen

Profitieren Sie von unseren Dienstleistungen für Handgehäuse

Mechanical processing
Special color
EMC coating
Printing
Engraving / laser marking
Procurement
Assembly / testing
Packing and logistics

Mechanical processing of handheld enclosures

We machine the Enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more

Painting in special color

If the color does not correspond to your idea or your company design, we also paint the enclosures in your desired color. Just let us know the desired RAL color, structure and gloss level. We also manufacture the enclosures in special granules from approx. 250 pieces.

Learn more

EMV coating of handheld enclosures

To protect your electronics from electromagnetic interference, the plastic enclosures can be EMC coated. We use the coating with copper conductive lacquer or an aluminum vaporization.

Learn more

Printing

If you would like to have your company logo or inscription on the enclosure, this is no problem. We print the enclosures for you using pad printing or screen printing processes. For motifs with detailed color gradient we use digital printing on a front foil.

Learn more

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more

Procurement of components

As a full-range supplier of enclosure solutions, it is part of our standard to also procure components that we assemble for you. Send us a parts list and you will receive a ready assembled enclosure.

Assembly

Our assembly department is equipped to deliver the enclosures ready assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.
