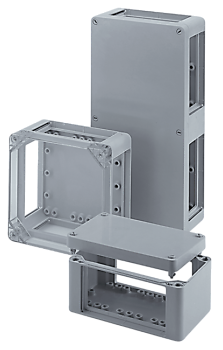

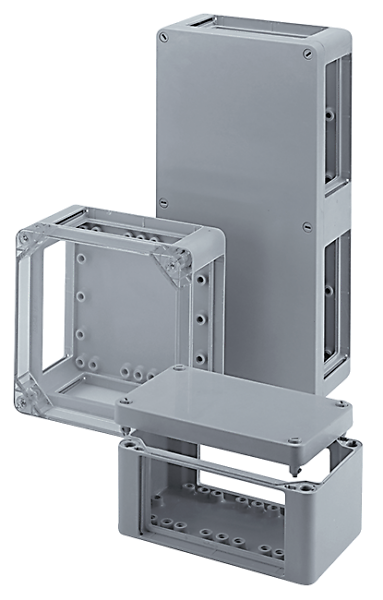

Polyester Flanschgehäuse grau
Polyester Flanschgehäuse grau

Polyester Flange enclosure

Plastic enclosure with flange openings
  • Combination possibilities with other polyester flanged enclosures
  • Quick connect technology

Enclosure Material:

glasfaserverstärkter duroplastischer Polyester

Klarsichtdeckel: Polycarbonat

Colour:

similar to RAL 7032, pebble gray

Protection Class:

IP 65 according to EN 60529

Dielectric strength:

enclosure : 18 KV / mm / VDE 0303

Transparent cover: > 30 KV / mm / VDE 0303

Burning behavior:

enclosure: V0 / self-extinguishing, UL 94

Transparent cover: V2 / UL 94

Impact resistance:

> 7 joules according to EN 50014

Temperature resistance:

PUR (polyurethane) seal: -40° C to +90° C

CR-(chloroprene) seal: -40° C to +100° C

VMQ (silicone) seal: -60° C to +130° C

Scope of delivery:

Plastic housing made of glass-fiber-reinforced polyester consisting of cover, seal, plastic quick-locking screws, lower part with flange openings.

(please order flange plates separately)

Threaded bushing set (4 pieces)

Accessories

  • Mounting plates
  • Front panel on stud bolts
  • Mounting rail TS 35 (TS 32 on request)
  • Grounding rail
  • Silicone gasket for cover
  • Blind flange
  • Threaded flanges
  • Connecting flanges
  • Cover joints
  • External fixing lugs
  • Threaded insert bushings
  • Silicone gasket for flanges / connecting flanges
Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more
Services

Benefit from our services for polyester flange enclosures

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Special color
EMV Lackierung mit Kupferinnenleitlack
EMC coating
Tampondruck auf einem Aluminiumprofil
Printing
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt
Engraving / laser marking
Beschaffung
Procurement
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse
Assembly
Gehäuse einschweissen in Plastikfolie
Packing and logistics
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing of polyester flange enclosures

We machine the Enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more
Pulverbeschichten von Hand

Painting in special color

If the color does not correspond to your idea or your company design, we also paint the enclosures in your desired color. Just let us know the desired RAL color, structure and gloss level. We also manufacture the enclosures in special granules from approx. 250 pieces.

Learn more
EMV Lackierung mit Kupferinnenleitlack

EMV coating of polyester flange enclosures

To protect your electronics from electromagnetic interference, the plastic enclosures can be EMC coated. We use the coating with copper conductive lacquer or an aluminum vaporization.

Learn more
Tampondruck auf einem Aluminium Profilgehäuse

Printing

If you would like to have your company logo or inscription on the enclosure, this is no problem. We print the enclosures for you using pad printing or screen printing processes. For motifs with detailed color gradient we use digital printing on a front foil.

Learn more
Gravierte Frontplatte mit schwarzer Schrift

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more
Beschaffung

Procurement of components

As a full-range supplier of enclosure solutions, it is part of our standard to also procure components that we assemble for you. Send us a parts list and you will receive a ready assembled enclosure.

Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse

Assembly

Our assembly department is equipped to deliver the enclosures ready assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more
Gehäuse einschweissen in Plastikfolie

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.
