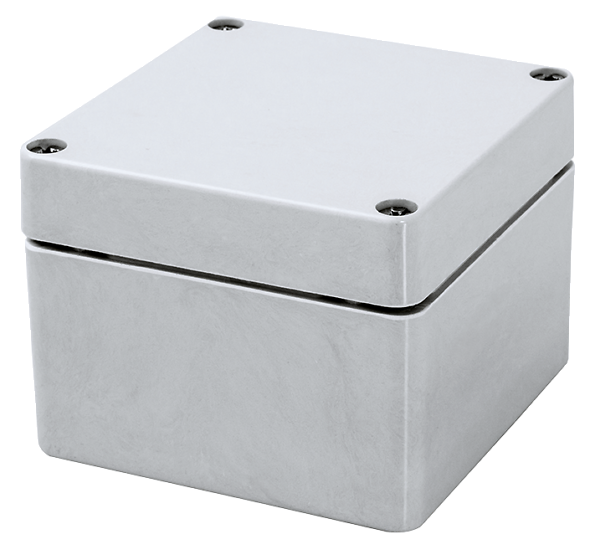

Railroad enclosure polyester

Enclosures for railroad technology - Reliable products from a competent and innovative partner

ROSE polyester enclosures for the railroad industry are designed to meet the requirements of the industry and the specifications of the European fire protection standard DIN EN 45545.
They are made of a special thermosetting polyester material that does not melt or drip in case of fire and has a moderate smoke emission.
According to tests in an accredited test laboratory, the material achieves excellent results with regard to smoke density, lateral flame spread and heat release in the event of fire. This means that the enclosures can be used in almost all rail projects.

Enclosure Material:

glass fiber reinforced thermoset polyester


similar to RAL 7047

Protection Class:

IP 66

Impact resistance:

IK 07 according to DIN 62208 / 2 Joule

IK Code:

07 according to IEC 62262

Lateral flame spread:

HL 3 gemäss EN 45545

Heat release rate:

HL 3 gemäss EN 45545

Flue gas concentration:

HL 3 gemäss EN 45545

Smoke density:

HL 2 gemäss EN 45545

Temperature resistance:

-40° C to +130° C with silicone seal


  • Mounting plates
  • External joints
  • External mounting brackets
  • Hexagon socket cover screws
  • Sealable cover screws
  • Mounting rails and clamps (manufacturer's choice)
  • Cable glands
Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Show more

Benefit from our services for polyester railway enclosures

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Special color
EMV Lackierung mit Kupferinnenleitlack
EMC coating
Tampondruck auf einem Aluminiumprofil
Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt
Engraving / laser marking
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse
Gehäuse einschweissen in Plastikfolie
Packing and logistics
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing of railway enclosures

We machine the Enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more
Pulverbeschichten von Hand

Painting in special color

If the color does not correspond to your idea or your company design, we also paint the enclosures in your desired color. Just let us know the desired RAL color, structure and gloss level. We also manufacture the enclosures in special granules from approx. 250 pieces.

Learn more
EMV Lackierung mit Kupferinnenleitlack

EMC coating of polyester enclosures

To protect your electronics from electromagnetic interference, the plastic enclosures can be EMC coated. We use the coating with copper conductive lacquer or an aluminum vaporization.

Learn more
Tampondruck auf einem Aluminium Profilgehäuse


If you would like to have your company logo or inscription on the enclosure, this is no problem. We print the enclosures for you using pad printing or screen printing processes. For motifs with detailed color gradient we use digital printing on a front foil.

Learn more
Gravierte Frontplatte mit schwarzer Schrift

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more

Procurement of components

As a full-range supplier of enclosure solutions, it is part of our standard to also procure components that we assemble for you. Send us a parts list and you will receive a ready assembled enclosure.

Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse


Our assembly department is equipped to deliver the enclosures ready assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more
Gehäuse einschweissen in Plastikfolie

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.
